what's PISTON PUMP ELECTRIC AIRLESS PAINT SPRAYER
A piston pump Electric Airless paint sprayer is electric high pressure paint sprayer machine, which has many components including a piston, V packings, and spray valves. The piston moves up creating a vacuum to suck up the paint into a chamber, the fluid section, and piston down to push the paint into a high-pressure hose.
The V- packings create a seal to prevent pressure losses during the painting operation. Professional electric airless paint sprayers use self-adjusting V-packings to prevent premature wear and the need for repairs. Check valves, or ball and seat valves, direct the flow of painting material from the fluid section of the pump to the hose. This prevents the paint from being pumped back through the pick-up tube
welcome to visit below sites for all our electric airless sprayer machines.
-
X-23(M) X-25(M) Professional Electric Airless Paint Sprayer with Piston Pump 2.4L/min
Motor power: 1300W/1.8HP, 1400W/1.9HP Max. tip size: 0.023”/ 0.025”
Max.pressure: 210bar/3045psi/21Mpa Flow rate: 2.2L/min 0.58gpm，2.4L/min 0.64gpmX-23(M) and X-25(M) Professional Airless Paint Sprayers are the best choice for professional painting contractors, who are looking for superior performance and control for daily use on residential, property maintenance and commercial applications. These airless sprayers will apply a...
-
X-35 Professional Electric Airless Paint Sprayer for Putty Plaster 5.0L/min
Motor power: 2000W/2.7HP Max. tip size: 0.035"
Max.pressure: 220bar/22Mpa/3200psi Flow rate: 5.0L/min 1.32gpmX-35 Heavy Duty Electric Airless Putty Sprayer is the upgraded model with long piston rod and low suction valve system. Similar to or even better than G MK 5 & W PS3.39, ideal for spraying high viscosity materials, such as putty / drywall mud / gypsum / white cement / ...
-
X-31 Professional Electric Airless Paint Sprayer with Piston Pump 3.8L/min
Motor power: 1800W/2.5HP Max. tip size: 0.031″one gun/0.021″two guns
Max.pressure: 210bar/3045psi/21Mpa Flow rate: 3.8L/min 1.0gpmX-31 Professional Airless Paint Sprayer is designed for contractors, to be used everyday on all residential, industrial and commercial applications. Powerful and reliable this unit sprays all materials from stains, lacquer, enamel, latex, epoxy, and other medium to high viscosity coatings. Technica...
-
DP-6336iB Professional Airless Sprayer (6.0L/min) For Putty Plaster epoxy waterproofing
Motor power: 2500W/3.4HP Max. tip size: 0.035"
Max.pressure: 220bar/22Mpa/3200psi Flow rate: 6.0L/min 1.59gpmDP-6336ib Professional airless paint sprayer is equipped with 2500w powerful brushless motor and big size piston rod, similar to 1095 . Designed for everyday use on all residential, industrial and commercial applications spraying with one gun or two. It is quite suitable for ...
-
DP-6331i Professional Airless Paint Sprayer, Better Than PS3.31 pump sprayer
Motor power: 1800W/2.5HP Max. tip size: 0.031″one gun/0.021″two guns
Max.pressure: 210bar/3045psi/21Mpa Flow rate: 3.8L/min 1.0gpmDP-6331i Professional airless paint sprayer is designed to be used everyday on all residential, industrial and commercial applications spraying with one gun or two. Powerful and reliable this unit sprays all materials from stains, lacquer, enamel, latex, epoxy, and other medium to high viscosity...
-
DP-6388B Portable Airless Sprayer for DIY Users
Motor power: 600W 0.8HP Max. tip size: 0.017”
Max.pressure: 210bar/3045psi/21Mpa Flow rate: 1L/min 0.27gpmDP-6388B (DIY 600w, 1.0L) portable diy airless sprayer provides good spraying performance in a compact, portable design – making it perfect for small size residential painting jobs, from stains, enamel to latex. Easy to spray and easy to clean. Simply connect it to hose and gun in minutes. Ideal ...
-

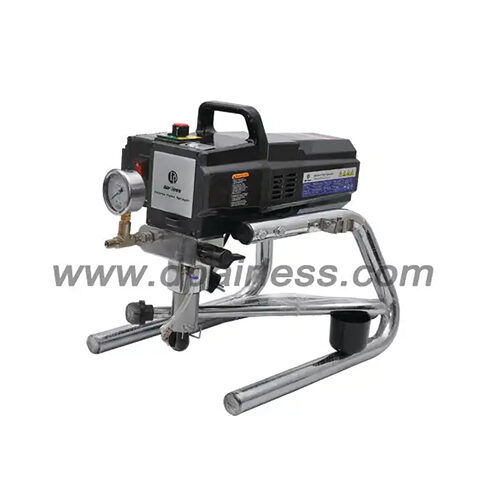

DP-6389i/iB/C Airless Paint Sprayer IX Series 440i Type
Motor power: 750W/1HP Max. tip size: 0.021”
Max.pressure: 210bar/3045psi/21Mpa Flow rate: 1.8L/min 0.48gpmDP-6389i/ib/c Electric Airless Sprayer is equipped with 750w permanent magnet DC motor/brushless motor, 1.8L/min flow rate, and 210bar/3050psi max pressure. Portable airless sprayer with built-in carrying handle. It's ideal for one gun residential and maintenance applications....
-

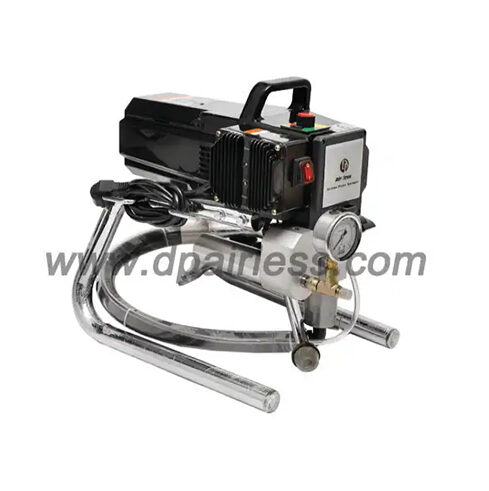

DP-6740i/iB/C Professional Airless Paint Sprayer 740ib type
Motor power: 1300W/1.8HP Max. tip size: 0.025”
Max.pressure: 210bar/3045psi/21Mpa Flow rate: 3.0L/min 0.8gpmDP-6740i/ib/c airless sprayer is equipped with 1300w DC permanent magnet motor (DP6740ib use brushless TEFC motor), 3 L/min Flow rate, and 230bar/3300psi work pressure. It's suitable for many kinds of low medium to high viscosity paint, colorant, varnish, lacker,lacquers, latex,stains, enamels, oil...
-
DP-6335i Electric Airless Putty Sprayer for Putty Spraying
Motor power: 2000W/2.7HP Max. tip size: 0.035"
Max.pressure: 220bar/22Mpa/3200psi Flow rate: 5.0L/min 1.32gpmDP-6335i Heavy Duty Electric Airless Putty Sprayer is the part of the DP-63 pro series electric Piston Pumps but with long piston rod, low suction valve system. Similar to G M-V & W 3.39 Ideal for spraying high viscosity materials, such as putty / drywall mud / gypsum / ...
Airless sprayer Piston Pump VS Diaphragm Pump
Advantages Disadvantages Piston Pump Airless sprayers •Pumps higher-viscosity coatings with ease, Provides higher pressure at common tip sizes, Better atomization, Allows the use of longer hoses......Read more
General Maintenance For The Airless Paint Sprayer
1.Use the appropriate size filters for the material being sprayed 2.Check filters daily, if clogged more than 20%, replace. If punctured, replace immediately....Read more
What Cleaner Should I Use To Clean My Airless Sprayer After Spraying?
To make it simple, you should use whatever the thinner is for the material you are spraying. E.g. Latex = Water Oil-base = Mineral Spirits Lacquer = Lacquer thinner ....Read more
How To Use An Airless Paint Sprayer ?
Airless paint sprayers come in many different configurations and designs but all have the same general features and controls. The basic idea behind how a sprayer works ......Read more
