DP-22 Series High Quality Air pneumatic paint Agitator mixer
High-Quality Air Mixer Agitators, height adjustable, tailored for all mixing needs. Ideal for industrial use, offering strong power, stable performance, and safe operation with no motor sparks or electrostatic risks.
High Quality Air pneumatic Agitator mixer
DP-22-51 Hand-held Pneumatic Mixer

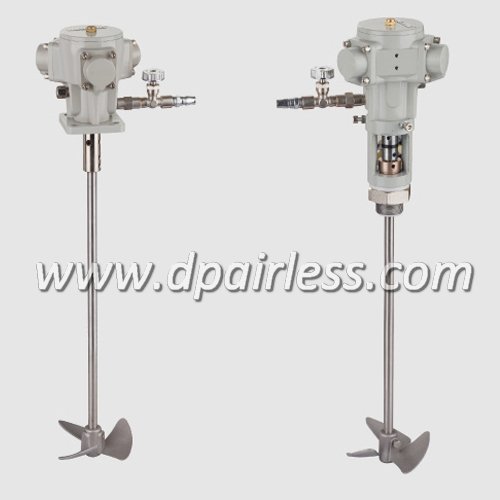

DP-22-61 DP-22-62 Fluid Agitator Pneumatic Mixer

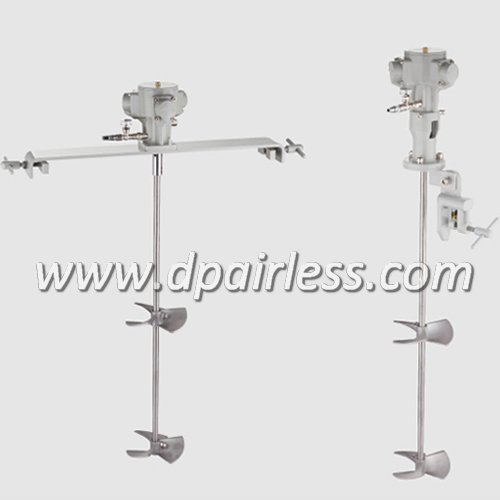

DP-22-71 DP-22-72 Clamped Type Pneumatic Mixer
DP-22 Series High Quality Air Mixer Agitators provide various solutions for all kinds of mixing jobs, there is always one suitable option to you. The air mixer is good for industrial / factory using, strong power and stable quality, no motor spark, no electrostatic, and could be used water based and also oil based material.
Specifications of the air pneumatic mixers / stirrers:
| Model | DP-22-31 | DP-22-41 | DP-22-51 | DP-22-61 | DP-22-62 | DP-22-71 | DP-22-72 |
| Type | Stationary Type | Lift Type | Hand-held Type | Standard Type | Clamped Type | ||
| Gear Ratio | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Power | 0.125HP(92W) | 0.125HP(92W) | 0.125HP(92W) | 0.125HP(92W) | 0.125HP(92W) | 0.25HP(184W) | 0.25HP(184W) |
| Torque | 0.637 | 0.637 | 0.637 | 0.637 | 0.637 | 1.37 | 1.37 |
| Speed(rpm) | 1100 | 1100 | 1100 | 1100 | 1100 | 900 | 900 |
| Air Consumption(NL/min) | 202 | 202 | 202 | 202 | 202 | 259 | 259 |
| Air Input Size | G1/4 | G1/4 | G1/4 | G1/4 | G1/4 | G1/4 | G1/4 |
| Mixing Shaft Material and Size(mm) | SUS30412*365 | SUS30412*440 | SUS30412*600 | SUS30412*430 | SUS30412*470 | SUS30415*820 | SUS30415*923 |
| Mixing Blade Material | Aluminium Alloy/Nylon | Aluminium Alloy/Nylon | Aluminium Alloy/Nylon | Aluminium Alloy/Nylon | Aluminium Alloy/Nylon | Aluminium Alloy | Aluminium Alloy |
| Weight(kg) | 5.2 | 10.4 | 3.6 | 3.5 | 4.5 | 7.5 | 7 |
| Axis Dimension(mm) | 370*190*520 | 422*144*631 | 840*150*165 | 620*200*165 | 620*200*165 | 1000*260*190 | 1000*260*190 |
Features of the air pneumatic mixer:
- Various models for option no matter you need it hand carry portable type, or clamp type fix it onto the large paint tank.
- Running smoothly and small vibration, with very low noise due to its precise machining components and imported japanese bearing.
- The air mixer is EX Explosion Proof, good safety for manufacturer using because no spark. The guaranteed long lifetime is necessary for factory manufacturing use.
- The air mixer speed can be adjusted by the air valve.
- The pneumatic mixer use top quality components like imported bearing, stainless steel tube, aluminum blade, etc
- Carton box package.
- could be used for both water based or oil based paint
- can handle the different paint putty or other chemical from low viscosity to high viscosity.
- The mixer is powered by air compressor which is recommended with 2hp or more, tank capacity 50L or more. it depends on your working condition.
