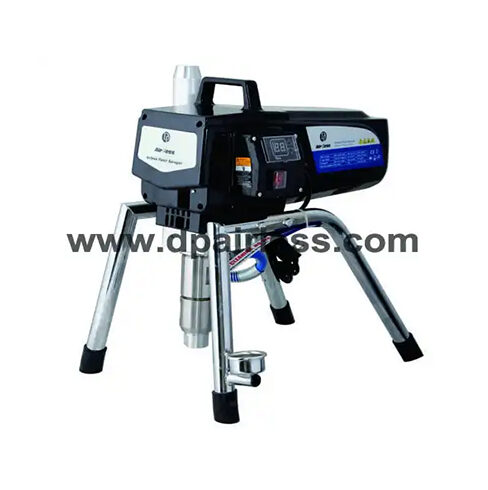

DP-6331i Professional Airless Paint Sprayer, Better Than PS3.31 Pump Sprayer
DP-6331i Professional airless paint sprayer is designed to be used everyday on all residential, industrial and commercial applications spraying with one gun or two. Powerful and reliable this unit sprays all materials from stains, lacquer, enamel, latex, epoxy, and other medium to high viscosity…
Model Number | DP-6331i |
Machine Power | Electric Powered |
Voltage | 200-240V/50&60HZ, 110V/50&60HZ |
Motor Power | 1800W/2.5HP |
Motor Type | PMDC motor |
Pressure Controlling | Digital + Electronical Pressure Control |
Flow Rate | 3.8L/min (1.0gpm) |
Max. Tip Size | 0.031″ (one gun) / 0.021″ (two guns) |
Max. Hose Length | 90m (300ft) |
Max. Pressure | 210bar/3045psi/21Mpa |
Spraying Pressure | 120bar/1740psi/12Mpa (0.031″); 150bar/2175psi/15Mpa (0.029″) |
Net Weight | 39.7kgs/87.40lbs (single machine, not include gun/hose) |
Gross Weight | 48.9kgs/107.6lbs (complete package) |
Package | Corrugated Carton (3-layers) |
Measurement | 64*58*84cm (26*23*33in) |
Container Load Quantity | 72sets/20ft, 144sets/40ft, 216sets/40HQ |
Worn Parts | Piston Rod + V-packings |
Warranty | 2 years Limited Warranty (for main components) |
Efficiency | 15-20m² (162-216 sq.ft) |
- Reliable Electronic Pressure Control
- Delivers a consistent spray fan across all spraying pressures, ensuring uniform application without fluctuations.

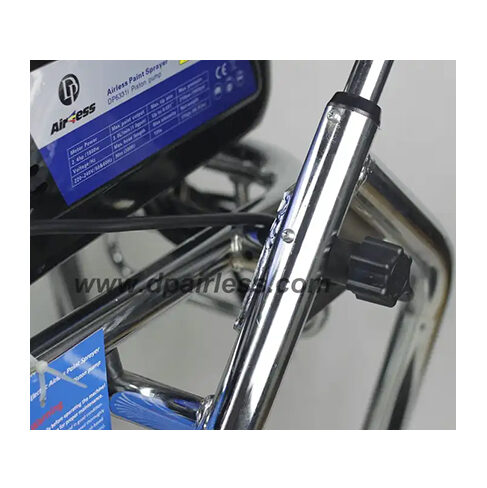

- Chrome-Coated Trolley Cart
- Designed with large wheels for easy mobility and transportation, enhancing user convenience on the job site.
- Powerful PM DC Motor
- Features a durable motor with an enclosed plastic cover to protect components from dirt, dust, and overspray, significantly extending motor life. This motor provides superior output and longevity compared to others available in China.

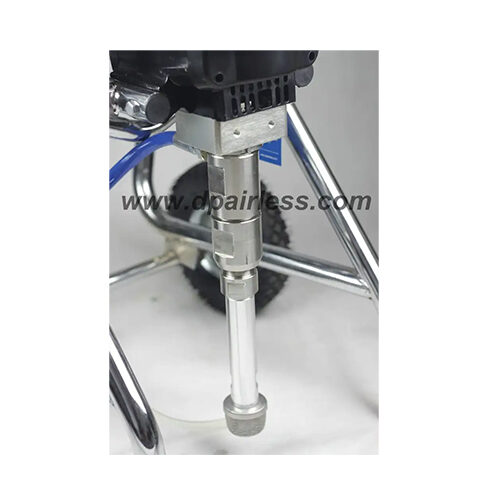

- Stainless Steel Fluid Section
- Constructed from lightweight, rust-proof stainless steel, this section is compatible with both water-based and oil-based paints, ensuring versatility in applications.
- Low-Speed Operation with Reduced Wear
- Equipped with European-made V-packing sets, the sprayer guarantees an extended lifespan for the piston rod and V-packing, lasting up to 60,000 square meters.
- Long-Lasting Motor
- Built to last, this high-quality motor can provide reliable performance for five years or more, minimizing downtime and maintenance costs.
- Pump Manifold and Filter Screen
- The design includes a pump manifold and filter screen to reduce pressure pulses and improve fluid filtration, enhancing overall performance.
- Improved Design Over Previous Models
- This sprayer represents an upgraded version of the Wagne PS3.31, featuring a new fluid pump design for easier disassembly, along with enhanced piston rod and V-packing for increased longevity compared to German counterparts.
