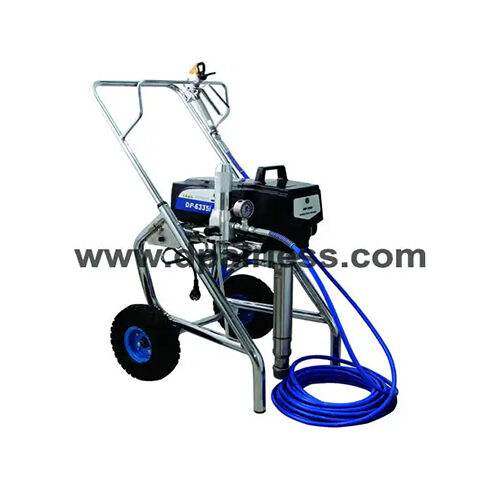

DP-6335i Electric Airless Putty Sprayer for Putty Spraying
DP-6335i Heavy Duty Electric Airless Putty Sprayer is the part of the DP-63 pro series electric Piston Pumps but with long piston rod, low suction valve system. Similar to 3.35 3.39 Ideal for spraying high viscosity materials, such as putty / drywall mud / gypsum / …
Model Number | DP-6335i |
Machine Power | Electric Powered |
Voltage | 200-240V/50&60HZ, 110V/50&60HZ |
Motor Power | 2000W/2.7HP |
Motor Type | PMDC Motor |
Pressure Controlling | Digital + Electronic Pressure Control |
Flow Rate | 5.0L/min (1.32gpm) |
Max. Tip Size | 0.035″ |
Max. Hose Length | 90 meters (300ft) |
Max. Pressure | 220bar/22Mpa/3200psi |
Spraying Pressure | 170bar/17Mpa/2465psi |
Net Weight | 43kgs/95Lbs (single machine, not include gun/hose) |
Gross Weight | 53kgs/116Lbs (complete package) |
Package | Corrugated Carton (3-layers) |
Measurement | 64*58*84cm (25*23*33in) |
Container Load Quantity | 72sets/20ft, 144sets/40ft, 216sets/40HQ |
Worn Parts | Piston Rod + V-packings |
Warranty | 2 years Limited Warranty (for main components) |
Efficiency | 20-25 m²/min (215-270 sq.ft/min) |
- Long Piston and Low Inlet Valve
- The innovative design features a long piston and a low-positioned inlet valve, providing exceptional suction power for handling high-viscosity materials such as putty, drywall mud, gypsum, white cement, lime-based materials, floor epoxy, fireproofing, anti-corrosive paint, emulsions, and various fillings.
- Digital Display for Pressure Regulation
- The integrated digital display allows for easy reading and regulation of the spray pressure, enabling precise control for different applications.
- Powerful DC Motor
- The powerful DC motor operates efficiently across a wide range of speeds, ensuring reliable performance whether at low or high speeds.

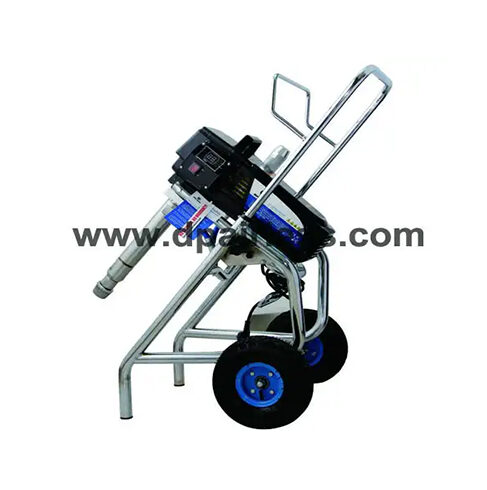

- New Angled Cart Design
- The newly designed cart features an angled design, making it easier for a single operator to load and unload the sprayer, enhancing portability and convenience.
- Retractable Telescopic Handle
- The retractable telescopic handle allows for compact storage, making it easy to transport and store the sprayer when not in use.
- Fast Container Change and Easy Cleaning
- Designed for user convenience, the sprayer allows for quick change of containers and simplifies the cleaning process, reducing downtime and ensuring readiness for the next job.
