DP-6336iB Professional Airless Sprayer (6.0L/min) For Putty Plaster epoxy waterproofing
DP-6336ib Professional airless paint sprayer is equipped with 2500w powerful brushless motor and big size piston rod, similar to 1095 . Designed for everyday use on all residential, industrial and commercial applications spraying with one gun or two. It is quite suitable for …
Model Number | DP-6336iB |
Machine Power | Electric Powered |
Voltage | 200-240V/50&60HZ, 110V/50&60HZ |
Motor Power | 2500W/3.4HP |
Motor Type | Brushless Motor |
Pressure Controlling | Digital + Electronical Pressure Control |
Flow Rate | 6.0L/min (1.59gpm) |
Max. Tip Size | 0.035″ |
Max. Hose Length | 90m (300ft) |
Max. Pressure | 220bar/22Mpa/3200psi |
Spraying Pressure | 170bar/17Mpa/2465psi |
Net Weight | 43kgs/95lbs (single machine, not include gun/hose) |
Gross Weight | 51kgs/112.2lbs (complete package) |
Package | Wooden Case |
Measurement | 70*52*87cm (27.6*20.5*34.3in) |
Container Load Quantity | 64sets/20ft, 136sets/40ft, 204sets/40HQ |
Worn Parts | Piston Rod + V-packings |
Warranty | 2-Years Limited Warranty (for main components) |
Efficiency | 20-25 m²/min (215-270 sq.ft/min) |
A. Microprocessor Pressure Control
- Consistent Performance: The microprocessor control system maintains a steady fan and spraying pressure, minimizing pulse and achieving a tight pressure deadband of just 5%. Users can easily set their desired pressure, with the system providing rapid adjustments during operation.
B. TEFC/Brushless Motor
- Powerful & Reliable: The brushless motor is engineered for enhanced power and durability, eliminating the need for carbon brushes and ensuring safe operation without sparks, making it suitable for oil-based and flammable paints.
C. Semi-Automatic Oiler
- Self-Lubricating Convenience: Simply press the oiling button daily before spraying, and the machine self-lubricates, significantly extending its lifespan while reducing the need for part replacements and repairs.
D. Faster Cleaning
- Efficient Maintenance: By adjusting the pressure knob to the cleaning position, the turbo pulse clean feature allows for a rapid flush, ensuring thorough cleaning of the machine in minimal time.
E. Automatic Speed Adjustment
- Protective Functionality: When the paint tank is empty, the microprocessor automatically reduces motor speed, helping to minimize wear on the piston rod and V-packings for increased longevity.

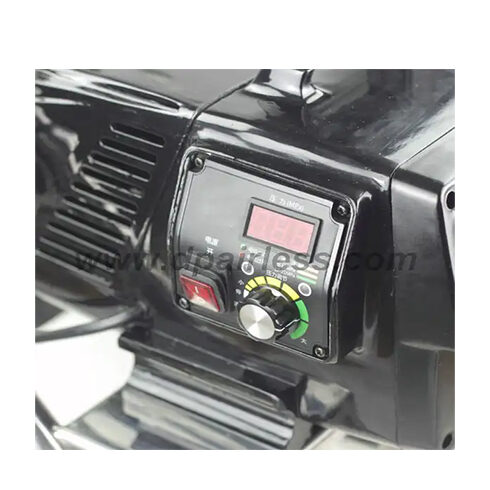

F. Digital Display
- User-Friendly Interface: The easy-to-read digital display shows pressure readings, allowing operators to monitor performance effortlessly during painting jobs.
G. Dual Gun Capability
- Increased Efficiency: The machine can accommodate two guns simultaneously, enhancing efficiency for larger projects and allowing for faster completion of painting tasks.
