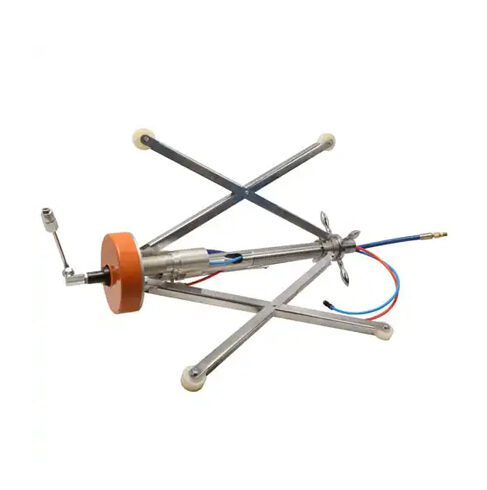

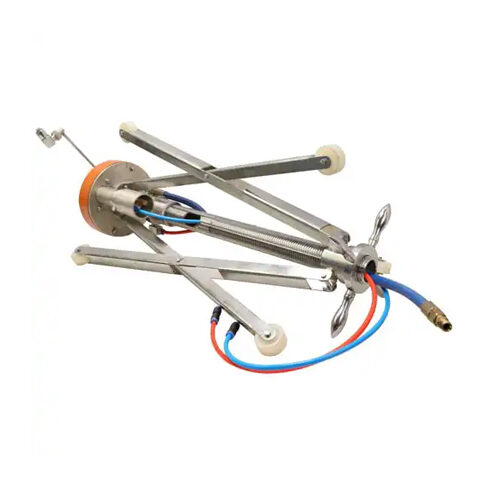

DP-IP03 DP-IP05 Internal pipeline paint sprayer
The IP03 and IP05 Internal Pipeline Paint Sprayers are perfect for coating medium-sized pipes, with capabilities to spray pipes ranging from Ф300 to Ф1200mm and Ф500 to Ф1800mm in diameter. Ideal for efficient and versatile internal pipe coating applications.
Technical data (IP03):
In spray coating pipeline hole scope (mm): Ф300-1200mm
Manifold pressure (MPa): 0.4-0.6
Spray nozzle velocity of whirl (r / min): 10-100
Fuselage length (mm): 950
Fuselage weight (kg): 18
Technical data (IP05):
In spray coating pipeline hole scope (mm): Ф500-1800mm
Manifold pressure (MPa): 0.4-0.6
Spray nozzle velocity of whirl (r / min): 10-100
Fuselage length (mm): 950
Fuselage weight (kg): 18
Features:
-Adjustable screw control will expand the scissor arms to fit internal pipes from 300mm up to Ф1200mm ID for IP03 and 500mm up to Ф1800mm ID for IP05.
-Pneumatic Rotating Adjustable Spray Arm fitted with a standard airless flat tip to suit the product being sprayed allows even coating of the internal area of the pipe.
-Simply connect your standard airless spray gun to the 15m paint hose included in this package and you are ready to coat internal pipes with ease.
