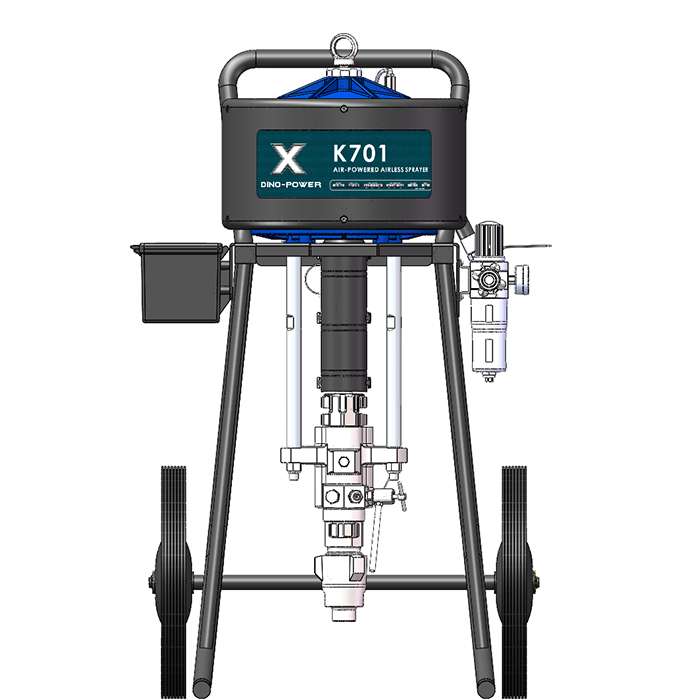

DP-K701 70:1 180cc –500bar sprayer for heavy-duty corrosion protection
The K701 air-operated high-pressure piston sprayer is a high-performance spraying machine designed for heavy-duty anti-corrosion applications and large-scale work. This piston pump has been one of the most reliable and widely used machines in the field of heavy corrosion protection applications and remediation of steel and concrete structures. Its performance parameters allow the processing of even extremely dense materials and the optional connection of more than three guns and long hoses. and it can handle the toughest protective coatings materials for any size job.
| Model Number | DP-K601/ DP-K701 / DP-K901 |
| Machine Power | Pneumatic powered |
| Pressure Controlling | Air regulator |
| Flow Rate @ 60 Cycles/min | 3.4 gpm (12.9 lpm) (DP-K601) / 2.9 gpm (11 lpm) (DP-K701) / 2.3 gpm (8.7 lpm) (DP-K901) |
| Max. Air Pressure | 7 bar(K601/701) 5.5Bar(K901) |
| Air Inlet | 3/8 inch |
| Fluid Outlet | 1/4 inch |
| Spraying Pressure | 41.4Mpa / 414bar / 6000psi (DP-K601) / 50Mpa / 500bar / 7250psi (DP-K701) / 50Mpa / 500bar / 7250psi (DP-K901) |
| Package | Plywood case |
| Pressure Ratio | 60:1 (DP-K601) / 70:1 (DP-K701) / 90:1 (DP-K901) |
| Air Motor Diameter | 650mm |
| Max. Pump Speed | 100 cycles per minute |
| Stroke | 100mm |
| Air Consumption | 500L/min, 52.8Lbs |
Key Features:
The K701 air-operated high-pressure piston sprayer is a high-performance spraying machine designed for heavy-duty anti-corrosion applications and large-scale work. This piston pump has been one of the most reliable and widely used machines in the field of heavy corrosion protection applications and remediation of steel and concrete structures. Its performance parameters allow the processing of even extremely dense materials and the optional connection of more than three guns and long hoses.
Robust two-wheel trolley,Offers quick and easy maneuverability on-site and compact storage when not in use.
Input control unit for pump control
Designed with mechanical controls, ensuring reliability and low maintenance—no electronic components prone to failure.
Maintenance-free air motor
Provides reliable power for high-demand projects, suitable for sites without electrical access.
Piston pump
Pump design allowing the most efficient flushing
Minimal loss of flushing agents
Flexible suction hose with pipe and filter
15 m x 1/4″ 2layers WIRE braided high pressure hose
500 Bar high pressure airless spray gun
500 Bar nozzle holder
500 Bar nozzle 519
