DP-N10 Cement Mortar Grouting Machine

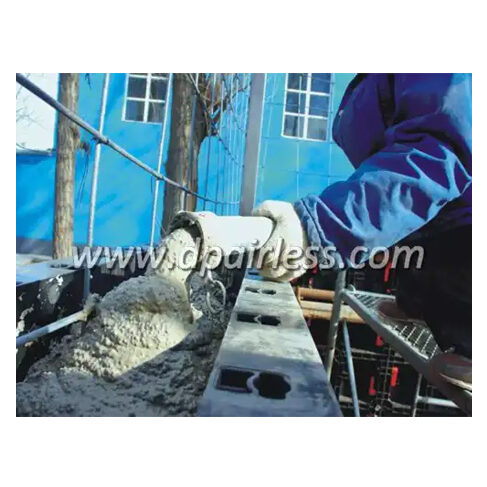

DP-N10/DP-N10C/DP-N10MC Cement Mortar Grouting Machine is specialy designed for cement mortar/concrete grouting with high efficiency. DP-N10 is without air compresssor or mixer, DP-N10C is with air compressor while without mixer, DP-N10MC is with both air compressor and mixer. Applications of DP…
Technical Data of DP-N10 Cement Mortar Grouting Machine :
Voltage/Frequency: 380V/50Hz 3-phase
Motor Power: 6.5/8KW two level adjustable, variable speed (lower/high)
Pump Delivery Capacity: 150L/min
Hopper Volume: 160L
Max. Working Pressure: 25bar
Delivery Height：1-15m
Delivery Distance: 1-30m
Cement Mortar Size: <7mm
Mixer Capacity(for DP-N10MC): 120L
Mixer Power(for DP-N10MC): 3kw
G.W.: 480kgs
Overall Demension: 244×91×145cm
Standard Accessories for N10:
Φ32mm*10m mortar hose 1pc
Φ13mm*10m air hose 2pcs
Repair kit 1set
Features of DP-N10 Cement Mortar Grouting Machine：
1. Output volume adjustable (lower/high speed)
2. Equipped with vibration screen.
3. With remote control function.
4. With durable screw pump.
5. Control box: the core of the machine, to drive the motor, air & water pump.
6. Safety cover & quick unpack gear & material hopper: the material can be unpack
by the gear on the net cover, and be even poured into the tank.
7. Quick snap: easy to fix the material hopper and the cart.
8. 6.5/8KW motor & retarder: to drive the twister for material transportation.
9. Stirrer tank: quick and even mixing material.
10. Water inlet: lead water into the machine from outside.
11. Spinning Form Twister & Screw Pump: the material will be transport to the outlet by
the screw pump after the quick and even mixing by twister.
12. Pressure controller: to adjust the pressure of the mortar pipe to avoid the suddenness
13. Mortar pipe connector: very easy to connect with the machine.
