High Quality Air-Powered Double Membrane Pump
AIR-POWERED DOUBLE MEMBRANE PUMP Model No. DP-A-10-1C DP-A-10N DP-A-10-1B DP-A-12W DP-A-12J Fluid Input Size 3/8 inch 3/8 inch 3/8 inch 3/8 inch 3/8 inch Max. Pressure 7bar 7bar 7bar 7bar 7bar Fluid Input size 3/8″ NPT 3/8″ NPT 3/8″ NPT 3/8″ NPT 3/8″ NPT Air Input size 1…
-

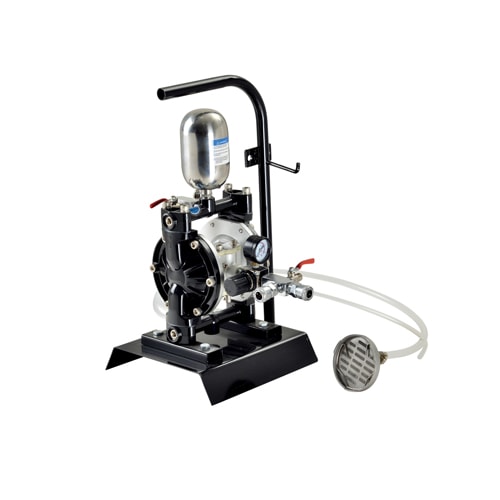

DP-A-10-1C Air-powered double membrane pump
DP-A-10N Double-membrane pump sprayer
DP-A-10-1B Air-Powered double membrane pump
#image_title

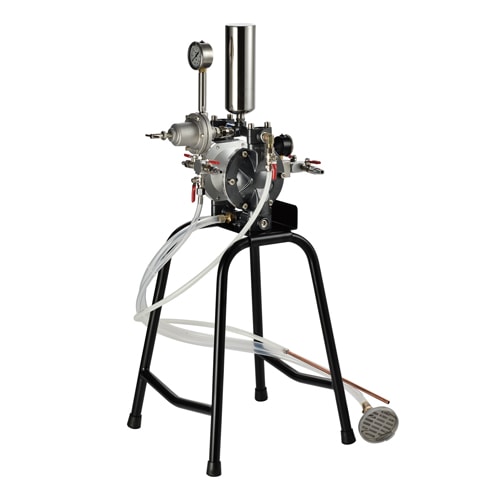

DP-A-12W Double-membrane pump sprayer
AIR-POWERED DOUBLE MEMBRANE PUMP Model No. DP-A-10-1C DP-A-10N DP-A-10-1B DP-A-12W DP-A-12J Fluid Input Size 3/8 inch 3/8 inch 3/8 inch 3/8 inch 3/8 inch Max. Pressure 7bar 7bar 7bar 7bar 7bar Fluid Input size 3/8″ NPT 3/8″ NPT 3/8″ NPT 3/8″ NPT 3/8″ NPT Air Input size 1/4″ NPT 1/4″ NPT 1/4″ NPT 1/4″ NPT 1/4″ NPT Starting pressure Planar Vlave:1.6bar
Low-presure Valve:0.5barPlanar Vlave:1.6bar
Low-presure Valve:0.5barPlanar Vlave:1.6bar
Low-presure Valve:0.5barPlanar Vlave:1.6bar
Low-presure Valve:0.5barPlanar Vlave:1.6bar
Low-presure Valve:0.5barMax. Prssage Amount 13L/min 13L/min 13L/min 13L/min 13L/min Maximum Pump Speed 300cpm 300cpm 300cpm 300cpm 300cpm Each Cycle Capacity 0.06L 0.06L 0.06L 0.06L 0.06L Max. Air Consumption Capacity 150NL/Min 150NL/Min 150NL/Min 150NL/Min 150NL/Min Particle Maximum Diamater φ2mm φ2mm φ2mm φ2mm φ2mm Lift Range 6.4m(wet),3.7m(dry) 6.4m(wet),3.7m(dry) 6.4m(wet),3.7m(dry) 6.4m(wet),3.7m(dry) 6.4m(wet),3.7m(dry) Net Weight 7KGS 7KGS 7KGS 7KGS 7KGS Carton Box size(mm) 340*290*490 340*290*490 460*350*440 340*290*490 340*290*490

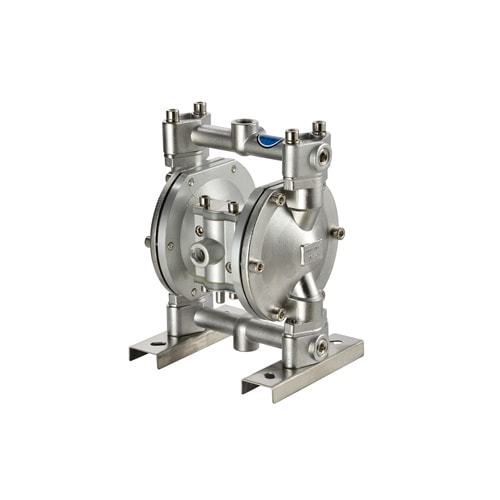

DP-S-11 316 Stainless steel diaphragm pump

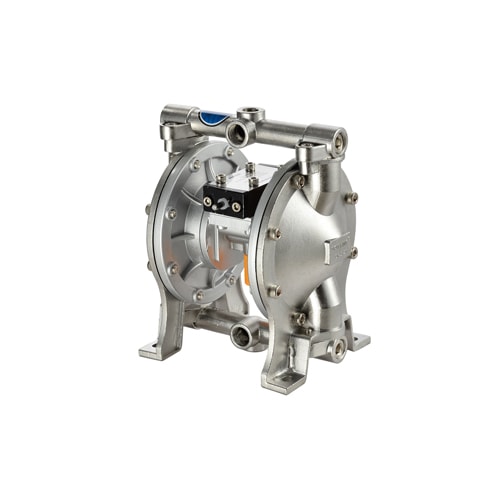

DP-S-21 Stainless steel 316 diaphragm pump
316 STAINLESS STEEL DIAPHRAGM PUMP SERIES Model No. DP-S-11 DP-S-21 DP-S-26S Fluid Input Size 1/2 inch 1/2 inch 3/4 inch Max. Pressure 7bar 7bar 7bar Fluid Input size 1/2″ NPT 1/2″ NPT 3/4″ NPT Air Input size 1/4″ NPT 1/4″ NPT 1/4″ NPT Starting pressure Planar Vlave:1.6bar
Low-presure Valve:0.5barPlanar Vlave:1.6bar
Low-presure Valve:0.5barPlanar Vlave:1.6bar
Low-presure Valve:0.5barMax. Prssage Amount 20L/min 42L/min 60L/min Maximum Pump Speed 300cpm 400cpm 400cpm Each Cycle Capacity 0.06L 0.15L 0.15L Max. Air Consumption Capacity 150NL/Min 350NL/Min 380NL/Min Particle Maximum Diamater φ2mm φ3mm φ3mm Lift Range 6.4m(wet),3.7m(dry) 6.4m(wet),3.7m(dry) 6.4m(wet),3.7m(dry) Net Weight 9.5KGS 9KGS 5KGS Carton Box size(mm) 460*350*440 535*400*250 280*290*200 Liquid contact material SUS316/PTFE SUS316/PTFE SUS316/PTFE

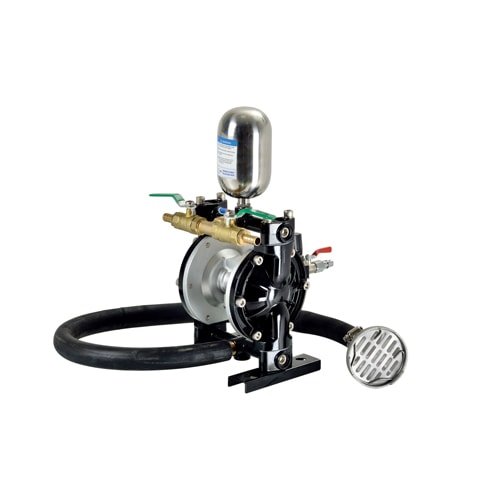

DP-A-10GT Roll coating machine diaphragm pump

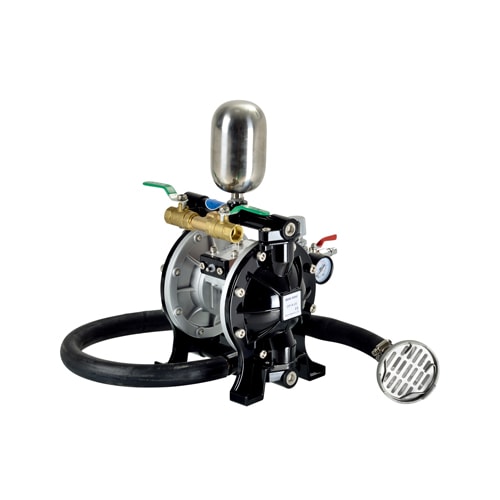

DP-A-20GT Roll coating machine diaphragm pump
Model No. DP-A-10GT DP-A-20GT Fluid Input Size 1/2 inch / Max. Pressure 7bar 7bar Fluid Input size 1/2″ NPT 1/2″ NPT Air Input size 1/4″ NPT 1/4″ NPT Starting pressure Planar Vlave:1.6bar
Low-presure Valve:0.5barPlanar Vlave:1.6bar
Low-presure Valve:0.5barMax. Prssage Amount 20L/min 42L/min Maximum Pump Speed 300cpm 400cpm Each Cycle Capacity 0.06L 0.15L Max. Air Consumption Capacity 150NL/Min 350NL/Min Particle Maximum Diamater φ2mm φ3mm Lift Range 6.4m(wet),3.7m(dry) 6.4m(wet),3.7m(dry) Net Weight 7KGS 9KGS Carton Box size(mm) 460*350*440 535*400*250

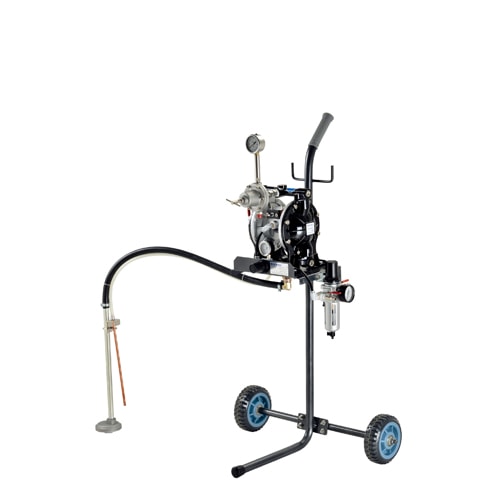

DP-ST20 Trolley diaphragm pump series
