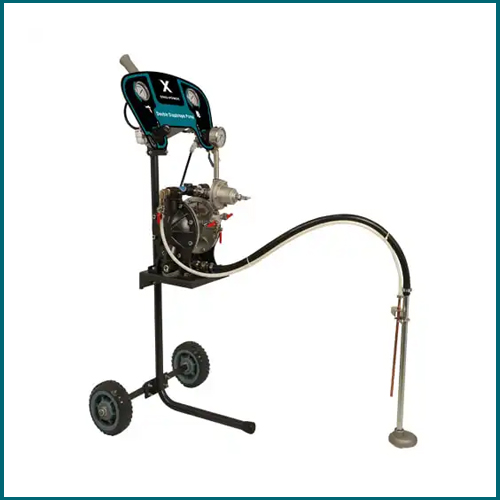

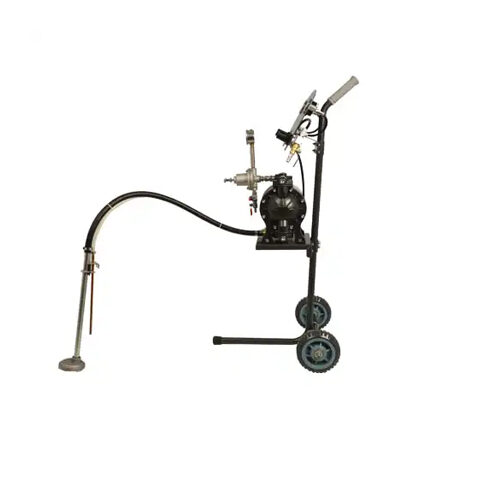

Air Operated Double Diaphragm Pump K40 is Cart Mount 1/2-inch diaphragm pump designed for conventional air spraying applications. Easy control of air pressure and paint spraying,  Portable, efficient, and ideal for professional use

Categories:

Questions about this product?

If you’re not finding the information you need, ask one of our experts.

Model No.: K40 Finishing

Application Technique: Air-powered spray

Transmission Ratio: 1:1

Fluid Input Size: 1/2 inch

Max. Pressure: 7bar/101.5psi

Air Input Size: 1/4” NPT

Starting Pressure (Planar Valve): 1.6bar

Starting Pressure (Low-pressure valve): 0.5bar

Volumetric Flow with Free Outlet: 60L/min

Max. Air Consumption Capacity: 350NL/Min

Max. Particle Diameter: 3mm

Features of the K40 Double-Diaphragm Pump:

  1. High-quality PTFE membrane in 142mm large diameter, generates larger volume output and lasts longer lifetime without problem. The Teflon material is imported from Japan, has better quality than other suppliers. and has a strong ability to be anti-corrosive and anti-acid/base.
  2. Each pump is mounted on a rugged, ergonomic cart for easy transport around the job site.
  3. Powerful performance: High fluid delivery keeps paint uniform while providing more than enough pulsed flow at the nozzle.
  4. Compact pump design meets all requirements for high-quality air spray coatings.
  5. Pneumatic pump control with dual spool air circuit promises a superior finish
  6. Wear a resistant pump assembly
  7. Double diaphragm paint pumps are the perfect choice for delivering fluid to manual and automatic spray guns.
