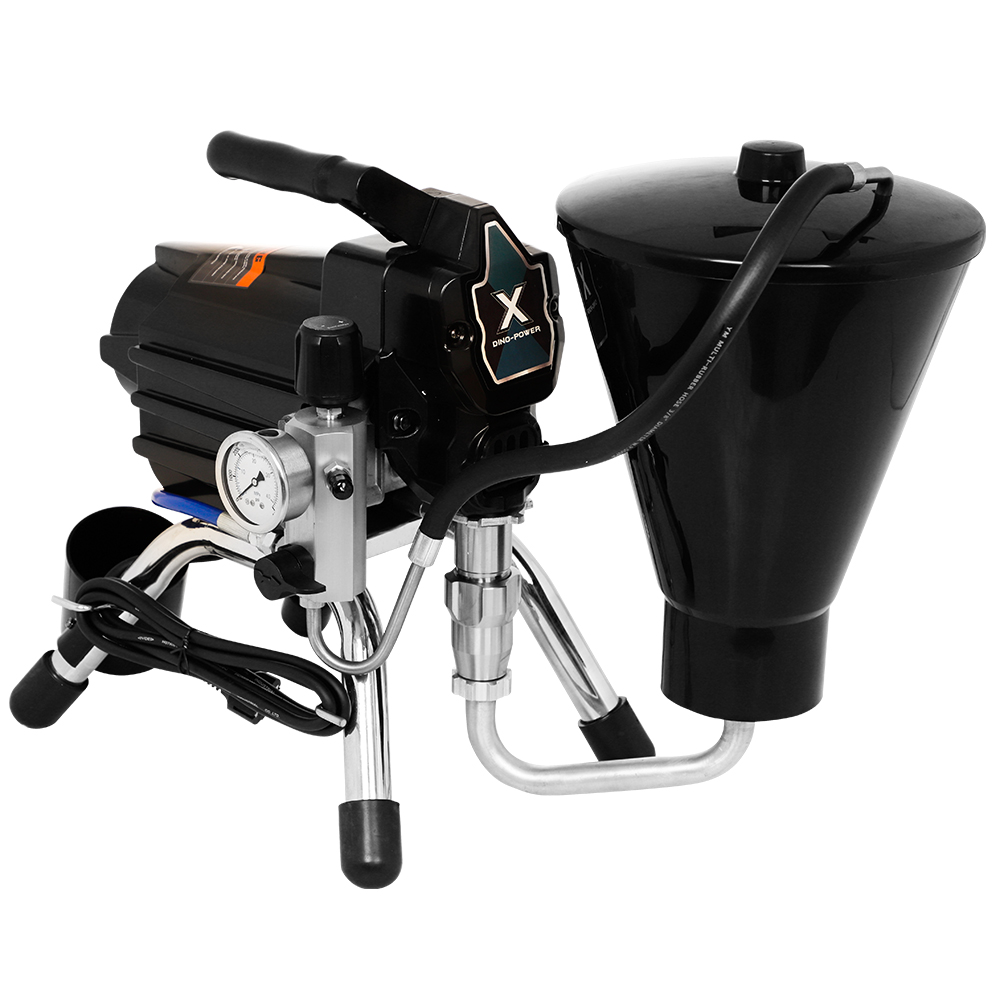

X20 Piston Pump Airless Paint Sprayer 2.0L/Min
X20 electric piston pump airless paint sprayer use PMDC brush motor, and Mechanical pressure regulator, is designed for entry level professional painters or small contractor who spray daily with various interial / exterior coatings, wall paint, acrylic paint, latex paint, or fence.
Model Number | X20 |
Motor power | 1100w |
Motor type | PMDC motor (BRUSH motor) |
Pressure controlling | Mechanical type |
Flow rate | 2.0L/min |
Max. tip size | 0.021″ |
Max. hose length | 45m to 60m |
Max. pressure | 210bar / 3100psi |
Spraying pressure | 150bar -190bar |
Net weight | 15kgs |
Gross weight | 20kgs |
Package | Carton box with foam inside |
Measurement | 49*42*54cm |
Container load quantity | 264 sets/20ft, 528sets/40ft, 660sets/40HQ |
Worn parts | Piston rod + v-packing set |
Warranty | 1 year |
1. Long Lifetime V-Packings and Piston Rod
- Extended Durability: The airless sprayer is designed with V-packings (Germany UHPE, American Leather) and hardened piston rods that provide a lifespan of 30,000 to 50,000 square meters, depending on the type of paint materials and working conditions, ensuring long-lasting performance and reliability.
2. Easy Clean Pump Manifold Filter
- Maintenance Made Simple: The pump filter is engineered to filter from the inside out, preventing collapse or blockage when removed. Additionally, the filter features a cap that allows for easy removal and cleaning, minimizing mess and making maintenance tasks straight forward.
3. High-Quality X450 Spray Gun included
- Optimal Performance: Equipped with the very light weight and confortable X450 airless spray gun, capable of operating at 250 Bar pressure. The gun includes an in-gun filter located in the handle, which helps ensure a clean and consistent spray, enhancing the quality of your work.
- The standard tip 517 or 519 is included in the package.
4. Unique design pressure regulator
- Ideal for entry level Professionals: This airless sprayer use the mechanical pressure regulator without pressure sensor, so the spraying pressure will goes up and down from 150 – 190bar. But if you change to bigger tip size like 519 or 521, then the spraying pressure will be very stable without fluctuation
is this a professional paint sprayer machine?
yes, this is entry level professional paint sprayer for professional painter or contractor use. it could be used for 12 hours a day and every day use.
what’s the material of the v-packing?
we use UHPE and leather for the guaranteed quality.
can the paint sprayer machine be used for oil based paint?
yes, you can use this machine to spray the oil based paint & water based paint. The wet components is ok to touch the thinner / solvent.
Is X20 paint sprayer machine same as 395 sprayer?
yes, the fluid pump / piston rod / v-packing / prime valve are interchangeable with original 395 paint sprayer. and the performance / quality is similar to 395 sprayer machine also.
