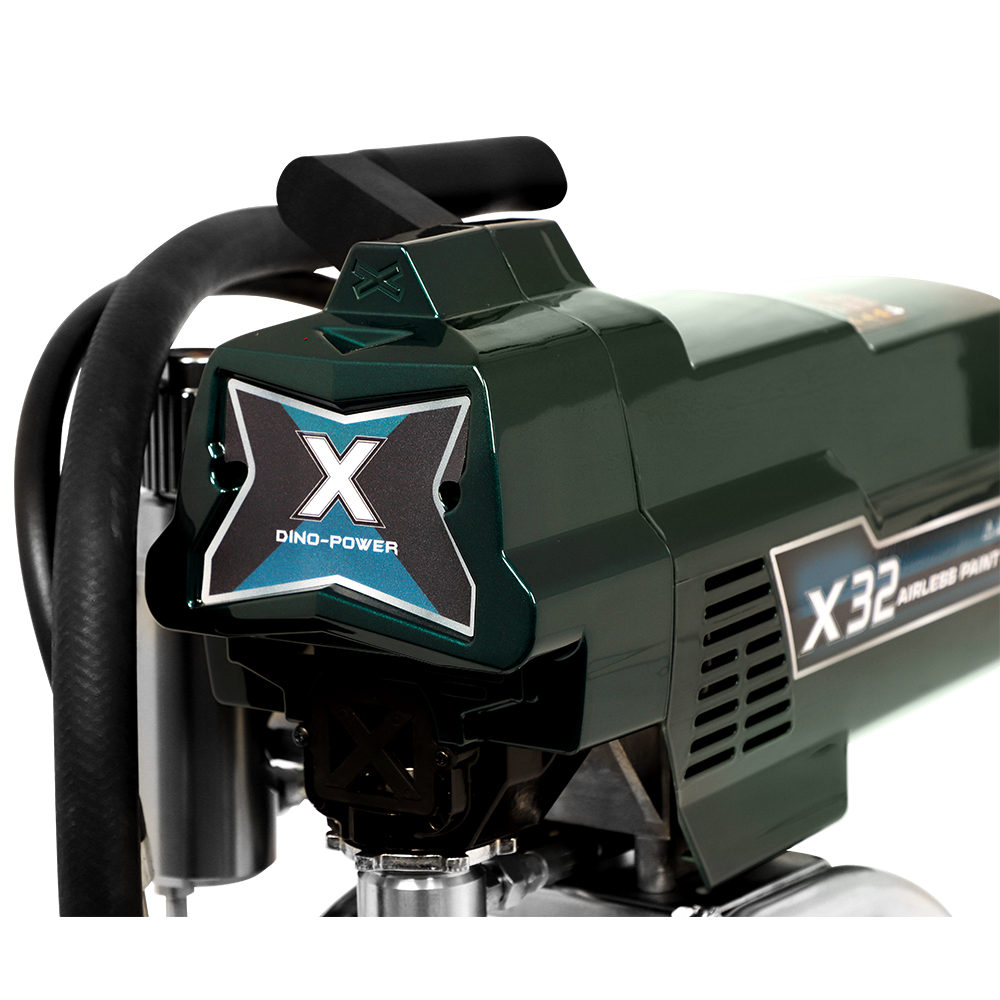

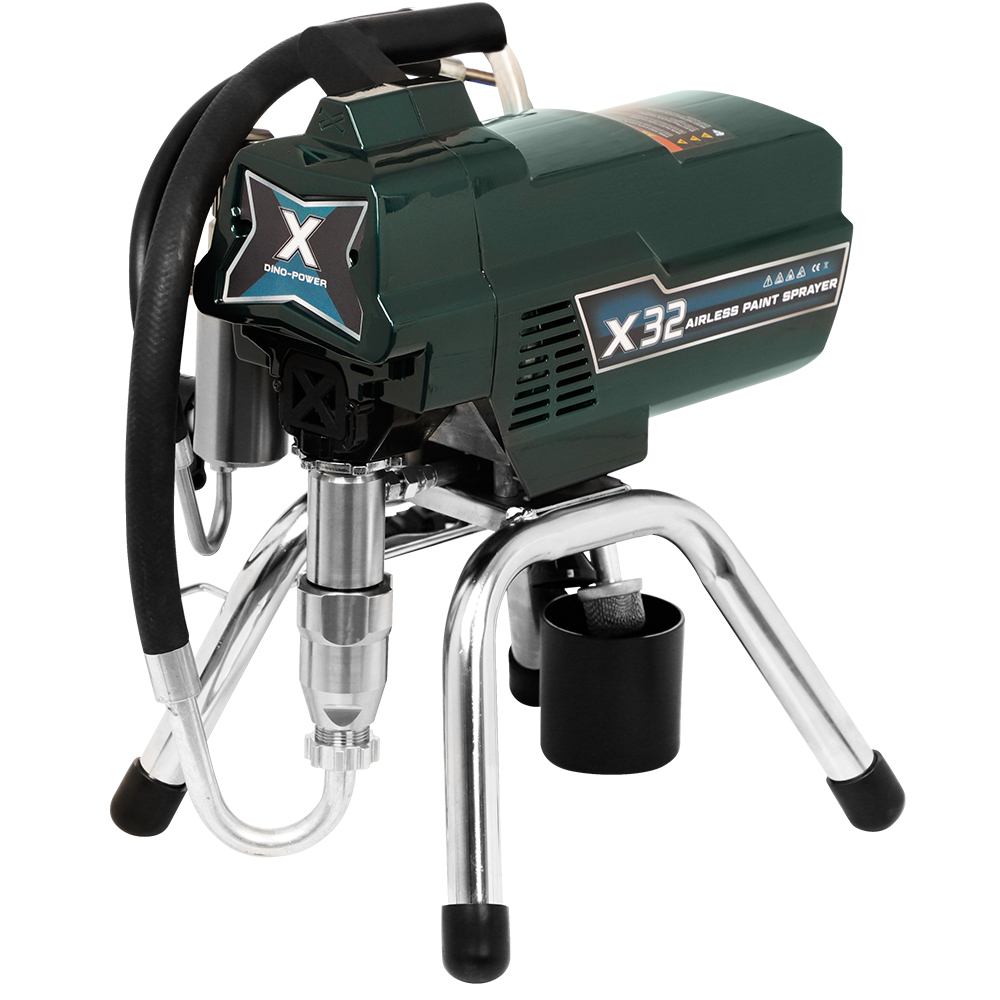

X32 Professional Airless Paint Sprayer 3.2L
X32 is an electric powered airless paint sprayers for professional contractors, Mid-size painting machine with hand-carry design. Ideal for interior and exterior wall painting in large size. The performance is similar to 695 pump, but more portable compared to Hi cart design.
Model Number | X32 |
Machine Power | Electric-powered 220v or 110v, 50hz & 60hz |
Motor Power | 2600W |
Motor Type | Brushless Motor |
Pressure Controlling | Electronic (PLC control board) |
Flow Rate | 3.2L/min |
Max. Tip Size | 0.031″ |
Max. Hose Length | 90M |
Max. Pressure | 227bar/3300psi |
Spraying Pressure | 210bar/3045psi |
Net Weight | 18KGS |
Gross Weight | 20.5KGS |
Package | Carton Box |
Measurement | 49.5x43x60cm |
Container Load Quantity | 176sets/20ft, 384sets/40ft, 480sets/40HQ |
Worn Parts | Piston Rod, O-rings, Gaskets, Ball & Ball Seat |
Warranty | 2 years for main components |
Feature of X32 professional airless sprayer pump

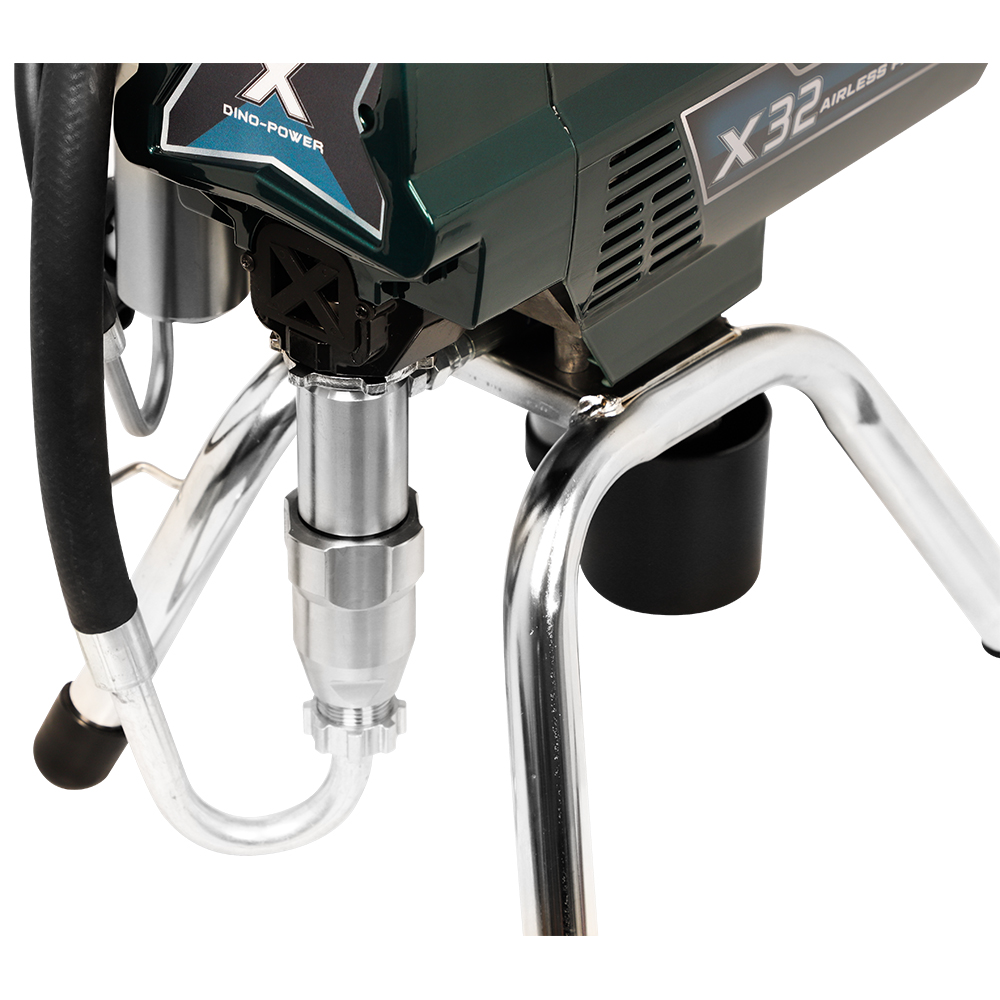

1. Long-Life Piston Pump
- Durability Focus: Designed with a long-lasting piston rod with heated treatment & fine grinding finish, and V-packings utilizing Germany UHPE material, and original American leather so as to ensure extended service life.
2. Compact and Robust Design
- Small and Sturdy: Chrome over steel construction provides resilience against job site abuse, ensuring durability in demanding environments.
3. High-Power Brushless Motor
- Powerful Performance: Features a high-quality 2600W or 2800W brushless motor, fully enclosed to protect internal components for prolonged motor life, accompanied by a one-year warranty.
- Reliability: No carbon brushes mean reduced wear and no sparks during operation, enhancing safety and durability.
4. Easy-Out Pump Manifold Filter
- User-Friendly Design: The pump filter is designed to filter from the inside out, preventing collapse or blockage when removed.
- Mess-Free Maintenance: The filter cap allows for easy removal and cleaning, minimizing mess during maintenance.

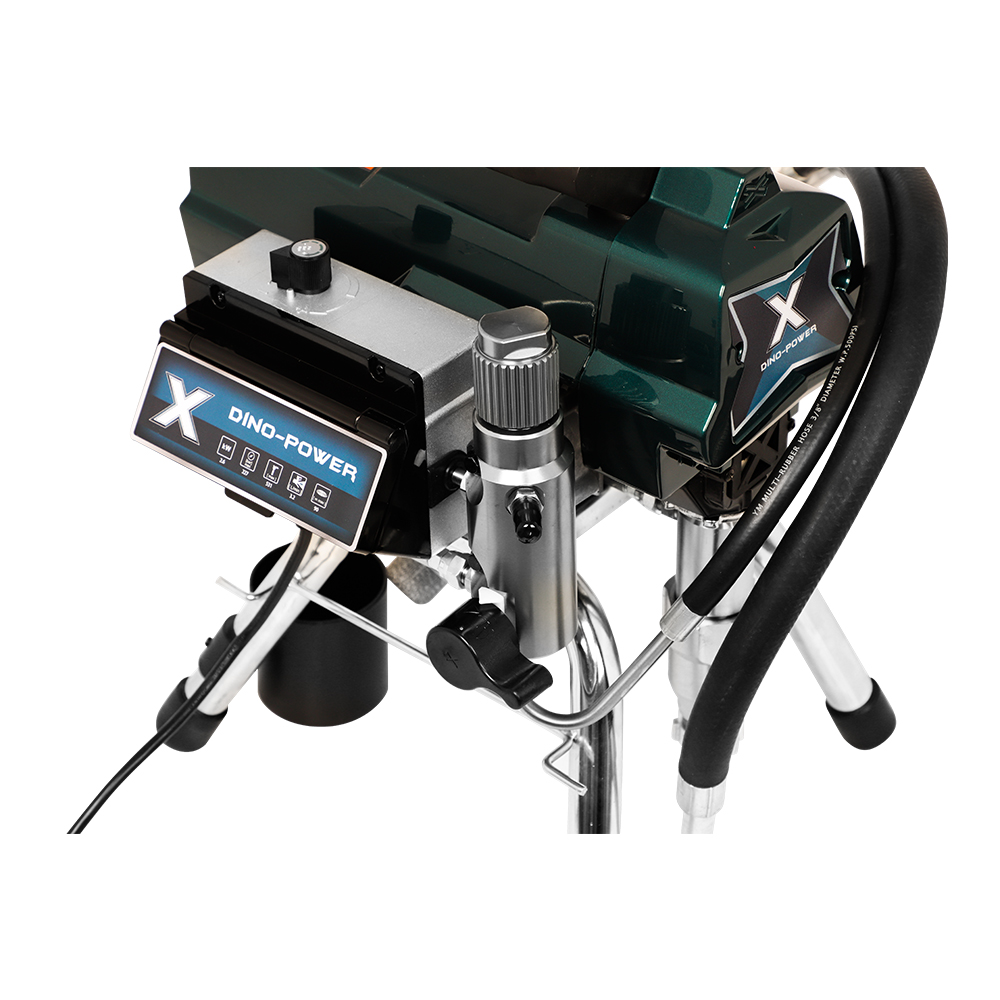

5. Smart Control PLC Technology
- Digital Precision: Equipped with digital pressure control and display for effortless pressure adjustments, ensuring optimal performance across different tasks.
6. High-Quality Airless Spray Gun
- Included Equipment: Comes with the X450 airless spray gun capable of 250 Bar pressure, equipped with a 517 spray tip for superior spraying capabilities.
7. Warranty
- Peace of Mind: Backed by a 2-year limited warranty for main components, ensuring confidence in quality and reliability.
How many years warranty for this paint sprayer?
This item is a professional paint sprayer machine, we offer 2 years warranty but except the easily worn parts (like piston rod, v-packing, spray gun, hose, tip, tube etc.)
What’s the advantage for the brushless motor?
The brushless motor doesn’t have a carbon brush, so it never get sparks during spraying. Then you could use it for any explosionable area. 2nd the brushless motor is inteligent than brush motor, it could adjust the speed itself so as to stablize the spraying pressure and get an even finish. No matter you’re spraying with 0.011″ small tip or 0.031″ big tip size, you will always have the best pressure to atomize the coating.
What’s MOQ for OEM order?
We need 100pcs as minimum order quantity for OEM orders (logo sticker manual color and package). but if you only need your own sticker and manual & package, we can accept 50pcs to print it for you.
How many days can i receive the shipment?
We will start the production as soon as we receive the deposit. normally we need 30-40 days as production period, and 10-40 days for sea shipping which depends on your country and sea port.
Can i buy the paint sprayer from you directly if I’m a final user?
Sorry we currently don’t sell our paint sprayer to final user because of expensive posting fee / customs fee , so we recommend you to buy it from our local dealer in the worldwide. please leave us your mobile phone number through below contact form, or through livechat below, and then we’ll forward your phone to our dealer, and they will call you directly.
Is it better to spray paint vertical or horizontal?
Normally Horizontal will give you a better result. because you must hold the sprayer completely straight at the wall, you need to make sure the spray gun nozzle is always 250-300mm distance far from the wall, so it’s much harder to do if you are spraying from top to bottom
Can the airless sprayer spray the oil based coating?
yes, we use stainless steel material for all the fluid passing components, even the fittings or swivel connectors.
and for the suction tube, it use aluminum anodizing treatment and the rubber tube has nylon layer inside so that the tube won’t get rust or corrosion with solvent / thinner.
