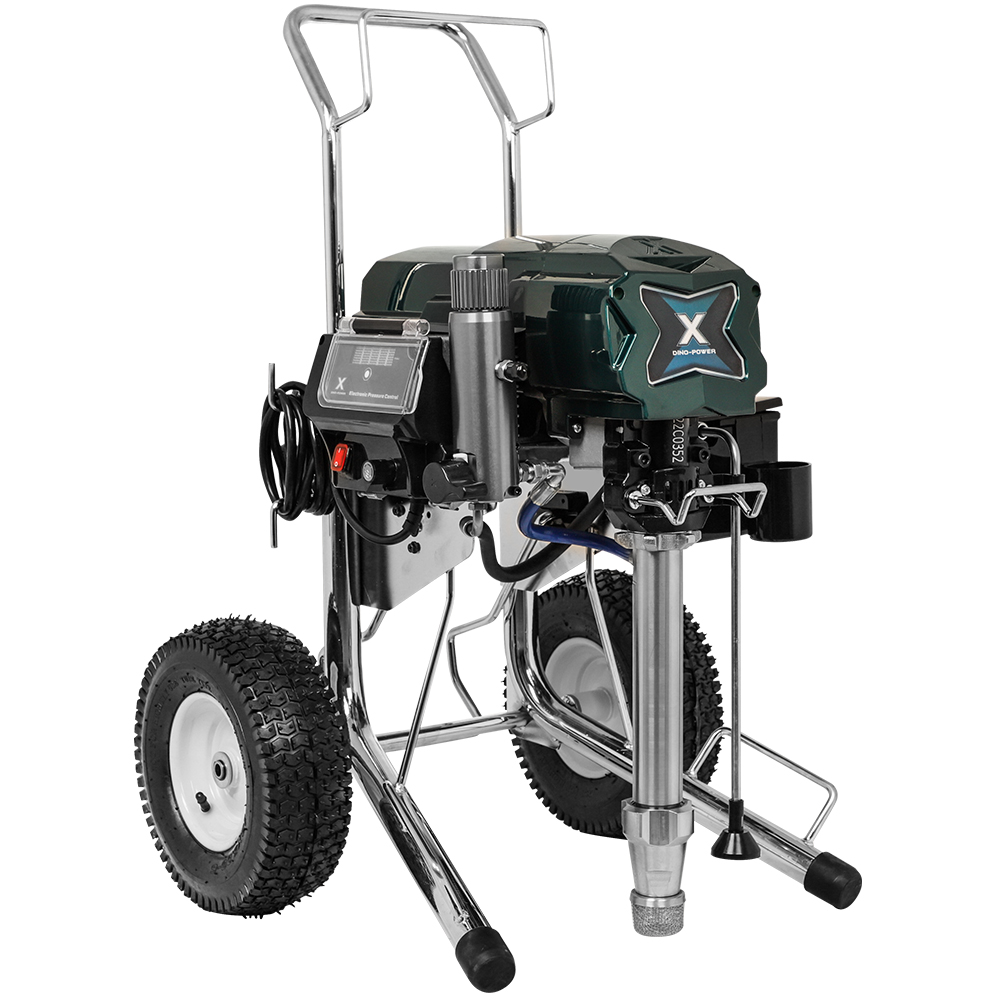

X51L Electric Airless Spray Painting Machine
X51L Airless Spray Painting Machine with LOW POSITION SUCTION VALVE is equipped with 3000W powerful brushless motor and long piston rod, and X51L Professional Airless Painting equipment is Designed for everyday use on all residential, industrial and commercial application spraying such as Acrylics, Coating, Drywall Mud, Elastomer, Enamel, Epoxies, Latex, putty, texture, etc.
| Model Number | X51L/X41L |
| Motor Power | 3000W/2800W |
| Motor Type | Brushless DC motor |
| Pressure Controlling | Electronic |
| Flow Rate | 5.1L/min/(X41L 4.0L/min) |
| Max. Tip Size | 0.037″(X41L 0.033″) |
| Max. Hose Length | 100m |
| Max. Pressure | 227bar/3300psi |
| Spraying Pressure | 200bar / 2900psi |
| Net Weight | 52.5kgs/44.0kgs |
| Gross Weight | 67kgs/62.5kgs |
| Package | Strong carton + plywood bottom |
| Measurement | 68*66*89cm |
| Container Load Quantity | 63 sets |
| Worn Parts | Piston rod+V-packing |
| Warranty | 2 years limited warranty |

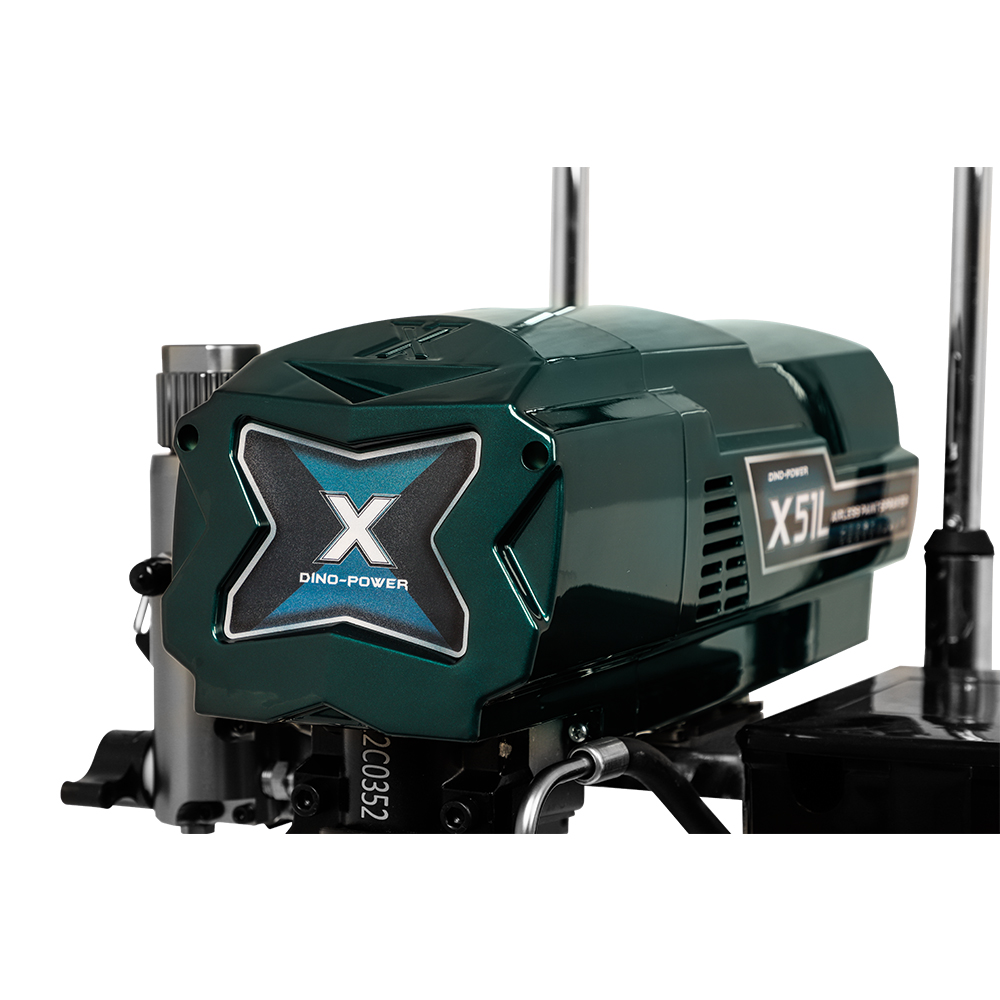

1. Brushless DC Motor
- Powerful and Reliable: Utilizes a robust brushless motor for enhanced power, durability, and reliability. The absence of carbon brushes means no sparks during operation, making it safe for use with oil-based and flammable paints.
2. Advantage Drive System
- Quieter Operation: The advanced drive system ensures a long lifespan while operating with significantly reduced noise levels, providing a more pleasant working environment.

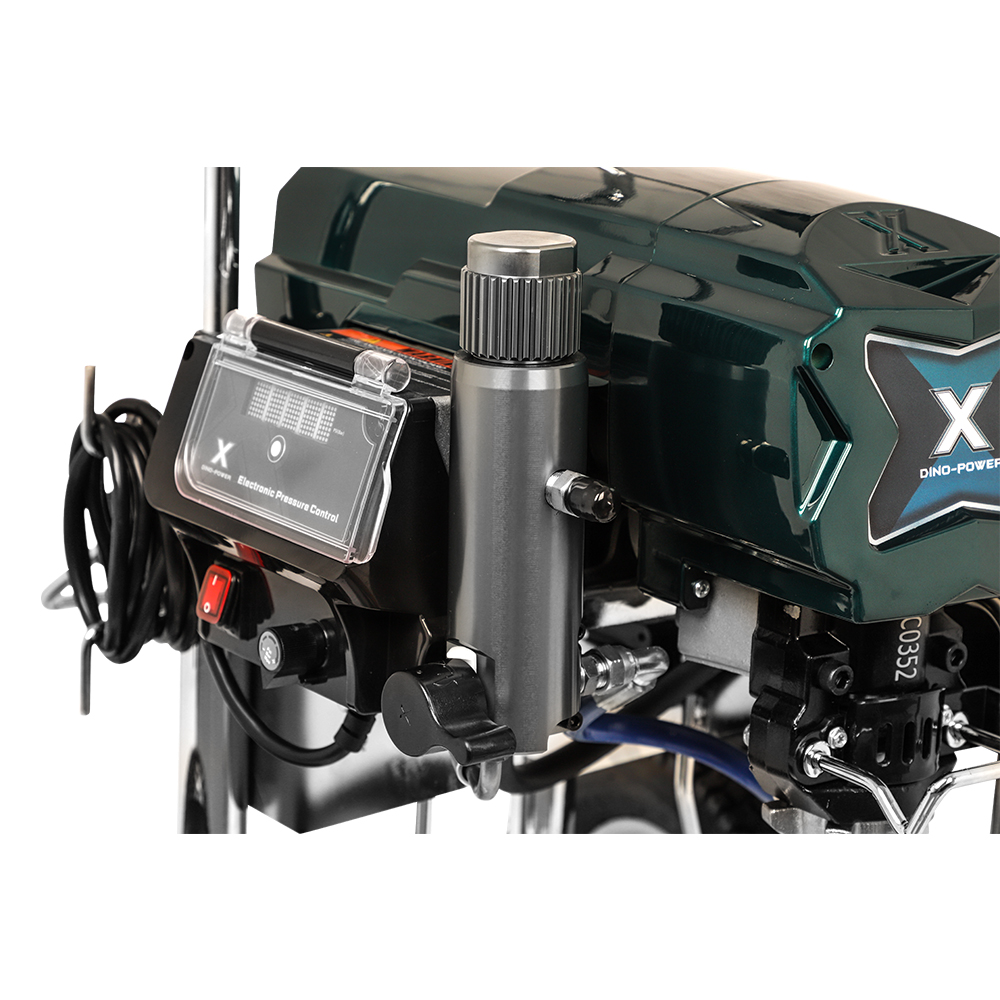

3. Automatic Pressure Control
- Consistent Spray Quality: Delivers a steady spray at any pressure without fluctuations, ensuring high-quality results regardless of the application.
4. Easy Servicing
- Durability and Accessibility: Designed for durability and ease of maintenance, allowing for less time spent in the workshop and more time focused on spraying tasks.

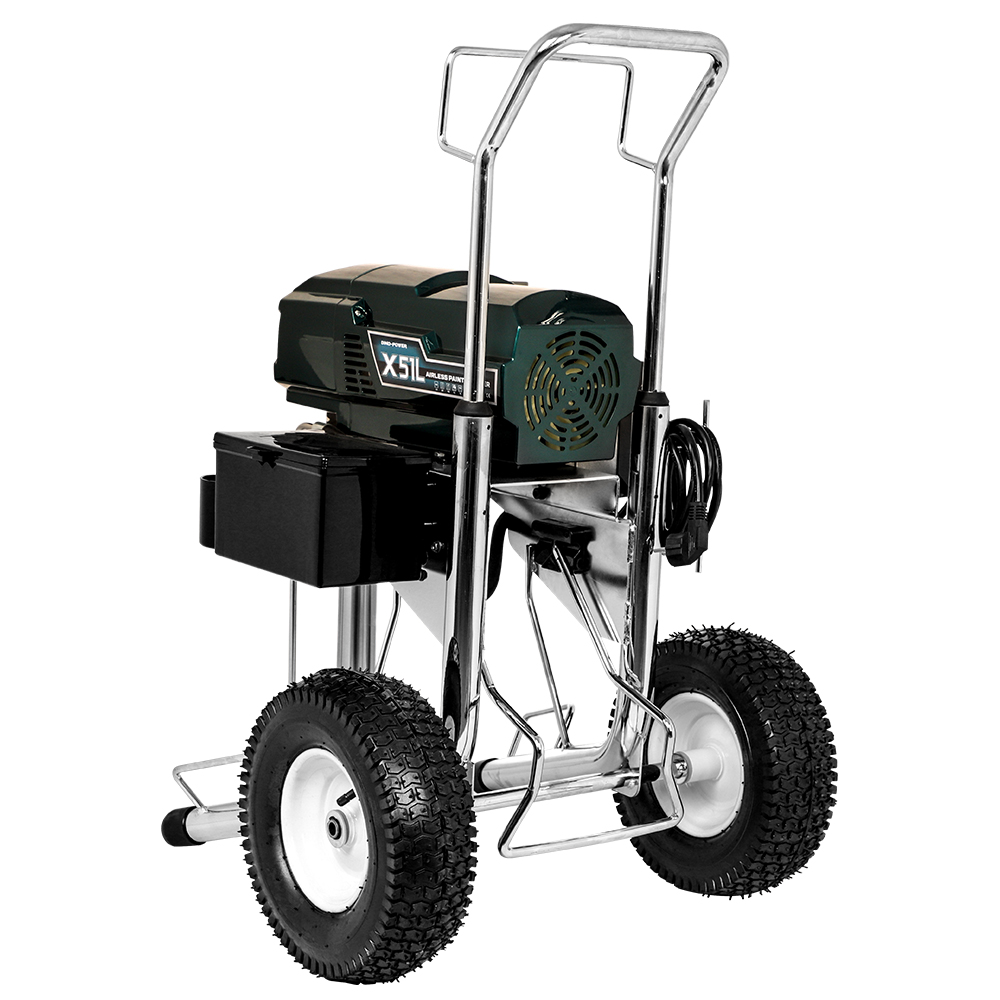

5. Solid Steel Frame
- Robust Construction: Features a chrome-plated steel frame that enhances durability, ensuring the cart withstands the rigors of job site use for years.
6. High-Pressure Prime Valve
- Upgraded Design: The maintenance-free prime valve features high-pressure stand dumping, enhancing efficiency and ease of use.
7. On-Board Toolbox
- Convenient Storage: Includes an onboard toolbox for storing tools, tips, filters, and other accessories, keeping everything organized and easily accessible.
8. DP-6376G Heavy-Duty Texture Spray Gun
- Enhanced Performance: The brand-new heavy-duty spray gun operates up to 500 Bar, accommodating larger tip sizes for heavy coatings and improved productivity.
9. LED Display
- User-Friendly Interface: Bright and easy-to-read LED display shows pressure settings, allowing for quick adjustments to optimize spraying conditions.
What’s the difference between DP-X51L and MARK V?
Both machines are great spray painting machine because both use powerful brushless motor & stainless steel fluid pump. We DP make the piston rod a little more stroke so our spraying capacity is more than Mark V.
when you test both machines spraying water with same gun same hose same 535 spraying tip nozzle, the Mark V spraying pressure is 100bar-105bar, while our DP X51L spraying pressure is 140bar.
How long is the warranty for this spray painting machine?
we offer 2 years warranty for the main components of X51L painting machine, except the wearing parts like piston rod, v-packing, ball / ball seat, filter etc.
what’s the maximum tip size the spray machine can support?
This X51L paint sprayer machine can support maximum 0.039″ tip size while the water spraying pressure is 100bar, 0.037″ tip size at 125bar pressure, 0.035″ tip size at 140bar.
Is this machine good for small tip size spraying?
we don’t recommend our client to use small tip size like 0.013 0.015 0.017 for this big painting machine, because the PCB control board will get over heating for long period spraying job.
if you only need small tip size for your painting job, then we recommend you to chose the small painting machine like X24 X28 X32…
This page contains everything you need to know about the airless spray painting machine, specially good for new beginner to read it.
How many square feet does a gallon of paint cover with an airless sprayer?
when using an airless paint sprayer to spraying the wall paint, One gallon (3.8 Liter) can of paint will cover 260 square feet (or 24 square meters). The X51 airless paint sprayer has 5L/min output capacity, that means it could cover 30 square meters in one minute.
