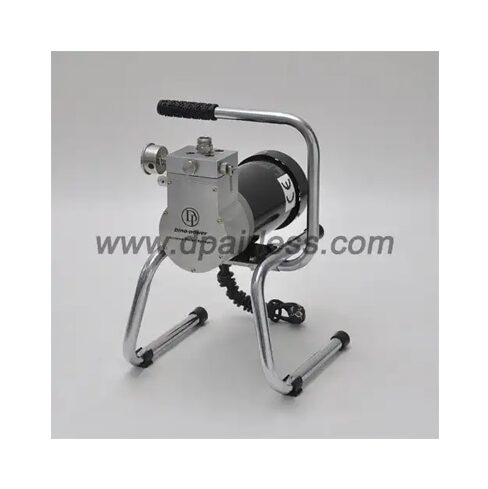

DP-6818/6818F portable airless paint sprayer pump
This airless paint sprayer with diaphragm pump(1HP, 2.0L) is ideal for fast painting of small to medium size indoor / outdoor wall latex painting, building decoration, residential etc. Portable airless sprayer includes 15m hose, airless spray gun with 517 spray tip, and on…
| Model Number | DP-6818 |
| Machine Power | Electric powered |
| Voltage | 220V/50HZ OR 110V/60HZ |
| Motor Power | 1.0HP / 750W |
| Motor Type | Induction motor (brushless) |
| Pressure Controlling | Mechanical regulator |
| Flow Rate | 2.0L/min, 0.53gpm |
| Max. Tip Size | 0.019″ |
| Max. Hose Length | 30m / 100ft |
| Max. Pressure | 22.7Mpa / 227bar / 3300psi |
| Spraying Pressure | 15Mpa / 150bar / 2175psi |
| Net Weight | 24.5kgs / 54.0Lbs |
| Gross Weight | 26.5kgs / 58.5Lbs |
| Package | Standard carton box |
| Measurement | 45*43*61cm / 1.5*1.4*2.0in |
| Container Load Quantity | 258SETS/20’FT, 528SETS/40’FT, 599SETS/40’HQ |
| Worn Parts | Diaphragm, inlet valve, outlet valve, pressure regulator, prime/spray valve |
| Warranty | One year warranty for main components (doesn’t include easy worn parts) |
1. Portable Carrying Type
- Design: Hand-carrying type sprayer with skid-mount feet, making it highly portable.
- Convenience: Easy to transport upstairs and around job sites, enhancing usability in various environments.
2. TEFC Motor
- Reliability: Equipped with a Totally Enclosed Fan-Cooled (TEFC) induction motor, ensuring dependable performance.
- Safety: The motor design eliminates issues like carbon brush wear and sparks, enhancing safety during operation.
3. Pressure Gauge Included
- Ease of Use: Comes with an oil-filled high-pressure gauge for straightforward pressure reading, allowing for quick adjustments during use.
4. Reliable Pressure Control Valve
- Performance: Features a mechanical pressure control valve that operates with the reliability of electronic options, providing consistent pressure management for optimal spraying.
5. Double-Layer Suction Filter
- Clog Prevention: Equipped with a two-layer inlet filter to effectively prevent dirt and grains from clogging the spray tip, ensuring smooth operation.
6. Quality Proven Inlet/Outlet Valves
- Material Quality: Inlet and outlet valves made from stainless steel and tungsten carbide, ensuring superior performance.
- Versatility: Suitable for use with a wide range of coatings, from stains to emulsion paints, making it adaptable for various applications.
