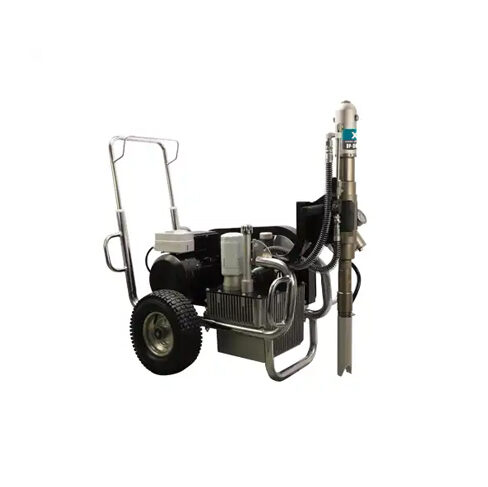

DP-9600E Electric Hydraulic Airless Sprayer

Features of DP-9600E Hydraulic Airless Spraying Unit

Powerful high-performance pump -the power pack for large building projects and applying high viscosity materials.
The fluid pump is driven by hydraulic motor which is imported from Taiwan.

This has advantage that the shovel piston has a distinctly longer and slower stroke than with direct drive electric pumps.
Our own improved bigger oil tank which contains of 13L hydraulic oil inside,  bigger than other brand paint spraying machine. The more oil inside, the less temperature spraying machine is operating, and less wearing for the spare parts.
The low wear rate and the equipment are further positive aspects of hydraulic technology.
The piston rod is made by special stainless steel with hardened treatment, which is able to withstand aggressive and abrasive materials.
The spraying pressure can be smoothly regulated up to 230 bar for perfect matching.

The paint sprayer machine use Stainless steel pump manifold filter, with filter inside.

Stainless steel prime valve could long lasting valve , no matter you spray water based or oil based.

The chrome coated cart with the inflated wheel are designed for any tough jobsite, last longer years.

American leather & Germany UHPE would prolong the lifetime of the hydraucli paint sprayer machine.

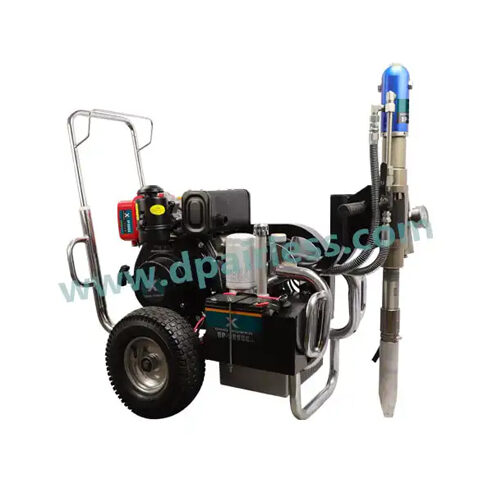

Gasoline enginer driving unit or Diesel engine driving sprayer unit are also available.

DP-9600E Applications of hydraulic airless sprayer

Indoors :
Large interior wall surfaces requiring a high level of productivity and surfaces coverage power:e.g. Primers, latex paints, emulsions and all other water diluted and solvent based materials
Applications of fillers (airless spray fillers)
Flame proofing / fireproofing, putty / plaster, gypsum,

Outdoors :
Exterior wall surfaces
Roof coatings
Thick coating materials
Bituminous paints
Corrosion proofing
Inorganic zinc and micaceous iron paints basement sealants.

Other :
– Fabric and other adhesives

– epoxy paint

– polyurethane paint
