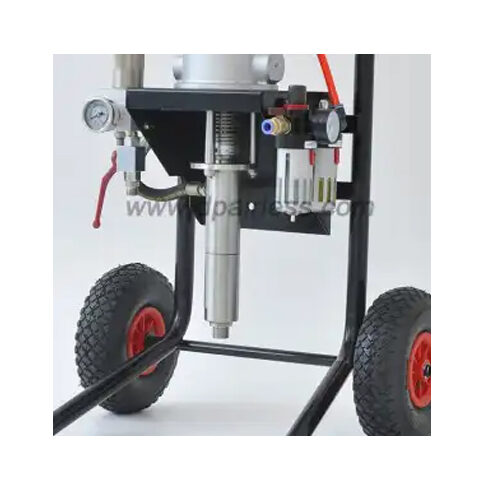

DP-K301/151/451 Professional Pneumatic Airless Sprayer (30:1 15:1 45:1)
DP-K301/151/451 pneumatic airless sprayers are equipped with stainless steel fluid pump, all the web parts are made of stainless steel material. So this unit is suitable for all kinds of sealers, topcoats, primers and wiping stains, colorant, varnish, lacker, in medium to high viscosity. Ideal fo…
| Model Number | DP-K301 / DP-K151 / DP-K451 |
| Machine Power | Pneumatic powered |
| Pressure Controlling | Mechanical regulator |
| Flow Rate | 6L/min, 1.58gpm (DP-K301) / 12L/min, 3.17gpm (DP-K151) / 4.5L/min, 1.19gpm (DP-K451) |
| Air Pressure | 3-8bar / 43.5-116psi |
| Air Inlet | 1/4 inch |
| Fluid Outlet | 3/8 inch |
| Spraying Pressure | 24Mpa / 240bar / 3480psi (DP-K301) / 12Mpa / 120bar / 1740psi (DP-K151) / 36Mpa / 360bar / 5220psi (DP-K451) |
| Net Weight | 31.5kgs / 69.5Lbs (DP-K301) / 33kgs / 73Lbs (DP-K151) / 30kgs / 66Lbs (DP-K451) |
| Gross Weight | 34.5kgs / 76Lbs (DP-K301) / 36kgs / 79.4Lbs (DP-K151) / 33kgs / 72.8Lbs (DP-K451) |
| Package | Plywood case |
| Measurement | 105*67*56cm / 3.5*2.2*1.8in |
| Container Load Quantity | 74SETS/20’FT, 153SETS/40’FT, 167SETS/40’HQ |
| Worn Parts | V-packing and piston rod |
| Warranty | One year warranty for main components |
| Pressure Ratio | 30:1 (DP-K301) / 15:1 (DP-K151) / 45:1 (DP-K451) |
| Air Motor Diameter | 160mm |
| Max. Pump Speed | 100 cycles per minute |
| Stroke | 100mm |
| Air Consumption | 200L/min, 52.8Lbs |
Key Features:
- Precision-Machined Valves
- Stainless steel and tungsten carbide construction for enhanced durability and long service life.
- Adjustable Pressure Control
- Adjustable from 0 to 3650 psi (250 bar) to match the requirements of different coatings and spray patterns.
- 4HP LONCIN Petrol Motor
- Provides reliable power for high-demand projects, suitable for sites without electrical access.
- Mechanical Pressure Control
- Designed with mechanical controls, ensuring reliability and low maintenance—no electronic components prone to failure.
- Chrome-Plated Telescoping Handle with Hose Wrap
- Offers quick and easy maneuverability on-site and compact storage when not in use.
- Pneumatic Tires
- Large tires allow smooth transportation on rugged construction job sites, reducing downtime.
Applications:
This gas-powered airless sprayer is versatile and suitable for both indoor and outdoor painting projects. It can handle a wide range of coatings from medium to high viscosity:
- Acrylics and Enamels
- Latex Paints
- Primers
- Fire-Proofing Coatings
- Floor Coatings and Epoxies
