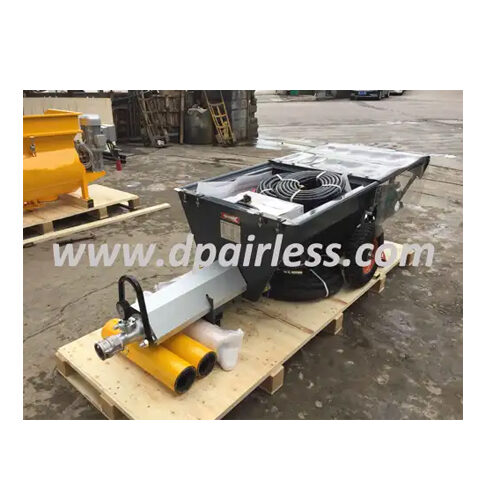

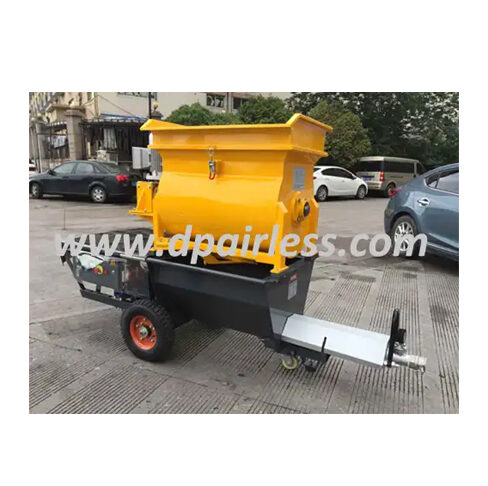

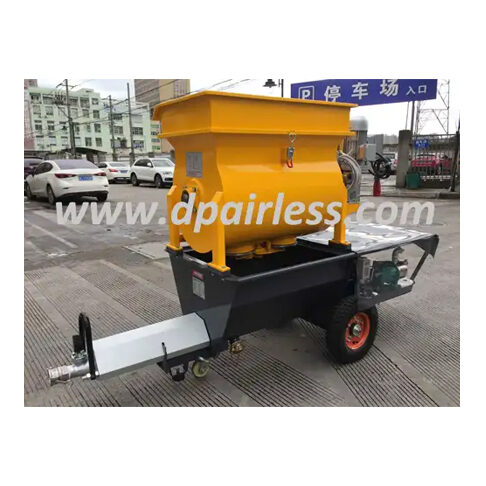

DP-N9/250 EPS Mixture Foam Cement Sprayer, Foam Concrete Spray

Features of DP-N9/250 EPS Cement Sprayer, Air Concrete Sprayer, Foam Concrete Spray Machine:

1.Spraying/Mixing /Grouting/Delivering 4-in-1.

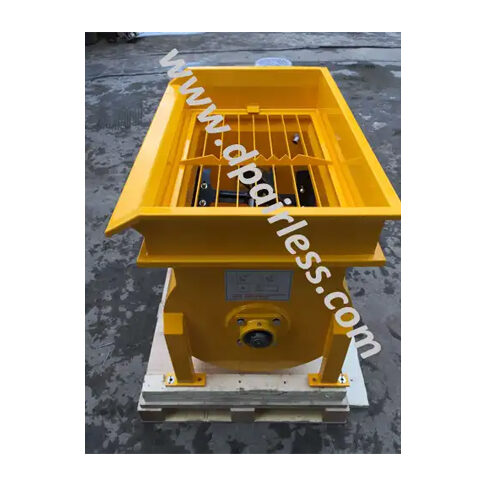

2.Forced horizontal shaft mixer ensures fully mixing and the plate valve enables easy discharging.

3.Mixing and feeding hopper is double circulation feeding, means continuous and high efficiency.

4.Self-contained jet water pump is with water supply time delay control, which is automatic and accurate.

5.Variable Speed Motor and large Screw Pump enables max. Output 5m3/h and max. Grain size 8mm.

Applications of DP-N9/250 EPS Cement Sprayer, Air Concrete Sprayer, Foam Concrete Spray Machine:

DP-N9/250 can do mechanized spraying and grouting for 3D injection of heavy steel and light steel integrated house envelopes, EPS Cement Sandwich Wall Panel,  such as light steel solid walls, floor boards and roofs. It can also be used for various types of reinforcement projects like traffic, irrigation works, foundation, etc.

Grouting Materials include:

Gypsum and cement-based lightweight aggregate(polystyrene particles), formed cement and cement mortar.

Material Mixing Ratio for Grouting: HY-A additive(250g):cement(50kgs):polyphenyl granule(0.125CBM, if grain size 3-5mm, then it’s about 1kg): water(26+-1kgs)
