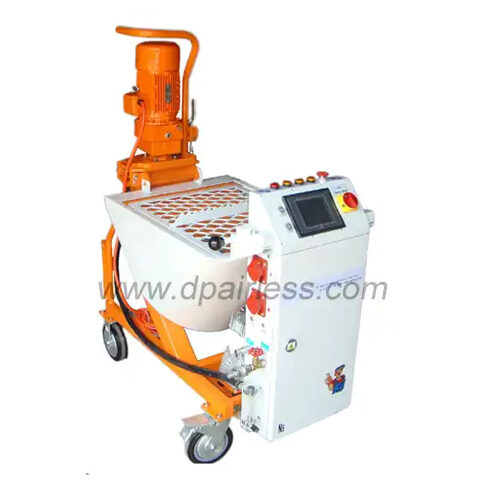

DP-N5 Cement mortar sprayer (auto-mixing) similar to PFT G4 G5
The DP-N5 and DP-N5A Cement Plaster Sprayers offer an economical and practical solution for plaster spraying. With a powerful motor and professional gearbox, they thoroughly mix dry materials in the hopper, similar to PFT G4/G5 systems.
* Tank capacity: 50L
* Working pressure: 30bar
* Compressor: 2.2kw 350L/min
* Voltage: 380v
* Motor for this cement sprayer equipment: 4kw
* Delivery capacity: 6 – 85 liters / min
* Delivering Height: 1-30m
* Delivering Distance:1-50m
* Nozzle size: 10,12, 15mm
* Max.hose length:50m
* Gross weight: 460kgs
* Net weight: 380kgs
Specification for N5 Cement mortar sprayer machine:
1. Control box: the core of the machine, to drive the motor, air&water pump.
2. Safety cover& quick unpack gear&material hopper: the material can be unpack by the gear
on the net cover, and be even poured into the tank.
3. Quick snap: easy to fix the material hopper and the cart.
4. The mortar spray machine use a 4 KW motor & retarder to drives the twister for material transportation in high efficiency.
5. The mortar spray machine has a large capacity stirrer tank for quick and even mixing of cement mortar material.
6. The Water inlet will lead water into the machine from outside automatically.
7. Spinning form twister&Screw Pump: the material will be transport to the outlet by the screw pump after the quick and even mixing by twister.
8. Pressure controller+adjust the pressure of the mortar pipe to avoid the suddenness
mortar pipe connector; very easy to connect with the machine.
9. The mortar spray machine has a built in air compressor with over 250L/min air output capacity,
