High Quality DP Piston Type Pneumatic Motors

High Quality DP Piston Type Pneumatic Motors

Be the first to leave a review.

Ask a Question

Experience durability with our High-Quality Piston Type Pneumatic Motors featuring a 3-piston shaft. Built for professional use and backed by a 2-year warranty for peace of mind.

Categories:

Questions about this product?

If you’re not finding the information you need, ask one of our experts.

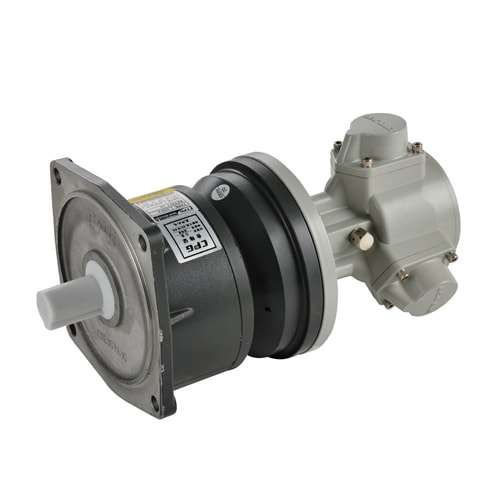

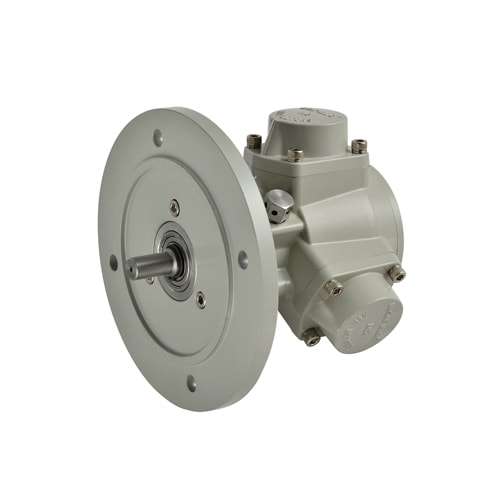

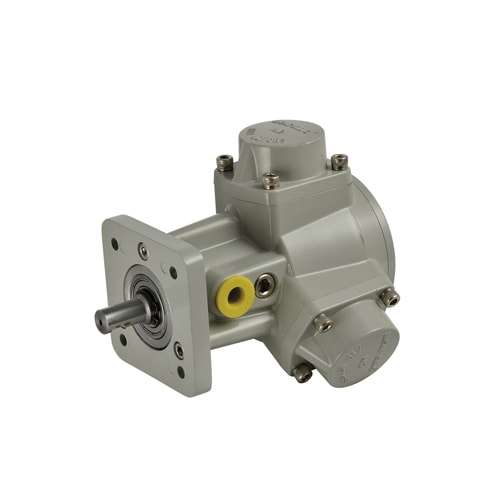

Item No. DP-AM1 DP-AM2
Gear Ratio G1/3 G1/5 G1/10 G1/15 G1/20 G1/3 G1/5 G1/10 G1/15 G1/20
Power 0.11HP(0.08KW) 0.16HP(0.12KW)
Torque(N.m) 0.64 1.8 3 6.1 8.8 11.5 0.95 2.7 4.4 8.7 13.1 17.3
Rated Speed(R.P.M) 1200 400 240 120 80 60 1200 400 240 120 80 60
Air Consumption 200L/min(7CFM) 210L/min(7.4CFM)
Stall Torque(N.m) 1.1 2.9 4.9 9.8 14.7 19 1.5 4.4 7.1 14.2 21.2 27.9
Weight(KG),                                                T for basic type,                                       L for vertical type,                                     W for horizontal type T: 1.4 T: 1.6
L: 1.8 L: 6.9 L: 8.4 L: 2.1 L: 7.2 L: 7.4
W: 2.3 W: 7.1 W: 8.2 W: 2.6 W: 8.5 W: 8.7

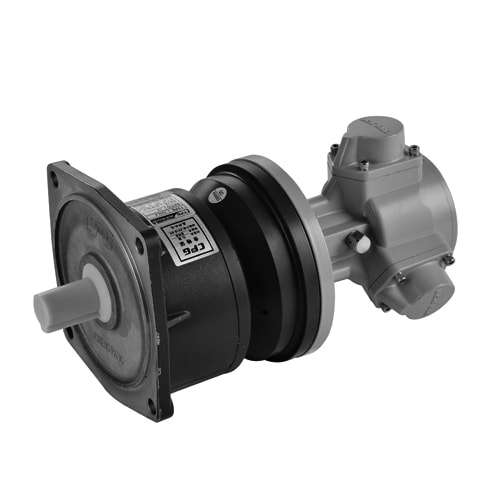

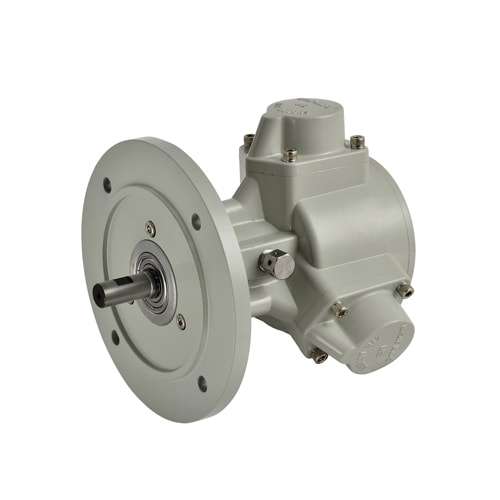

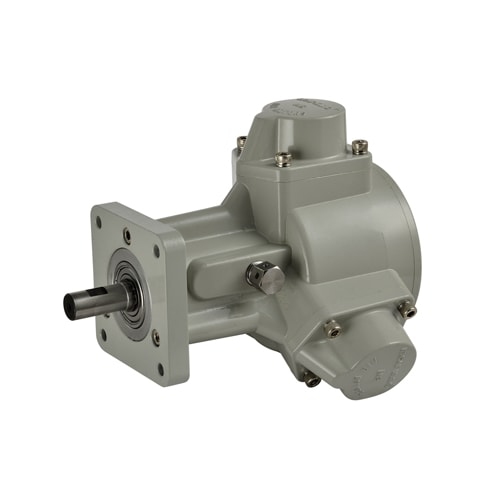

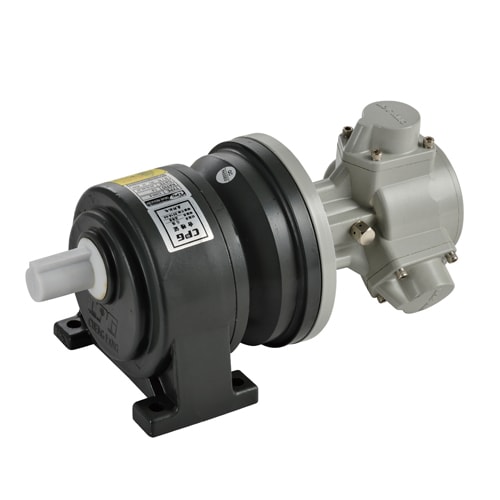

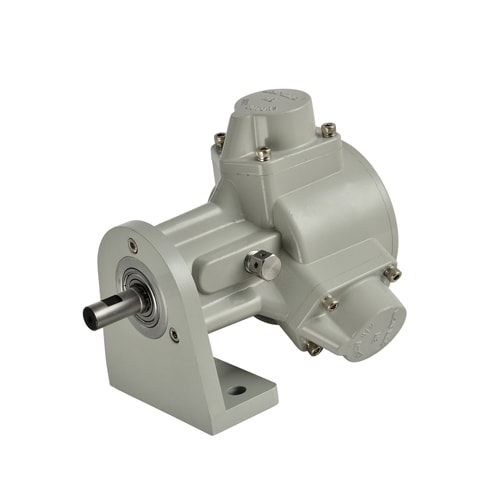

Item No. DP-AM3
Gear Ratio G1/3 G1/5 G1/10 G1/15 G1/20 G1/30 G1/40 G1/50
Power 0.25HP(0.18KW)
Torque(N.m) 1.7 4.7 7.9 15.9 23.6 31.5 46.8 62.3 77.3
Rated Speed(R.P.M) 1000 330 200 100 66 50 33 25 20
Air Consumption 260L/min(9.2CFM)
Stall Torque(N.m) 2.3 7.8 12.8 26 38.5 51.5 76.4 101.5 125.3
Weight(KG),                                                T for basic type,                                       L for vertical type,                                  W for horizontal type T:2.7
L:3.2 L:9.6 L:12.2
W:3.8 W:9.7 W:12.4

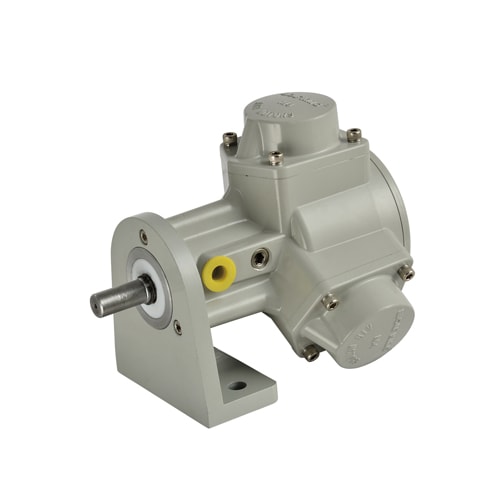

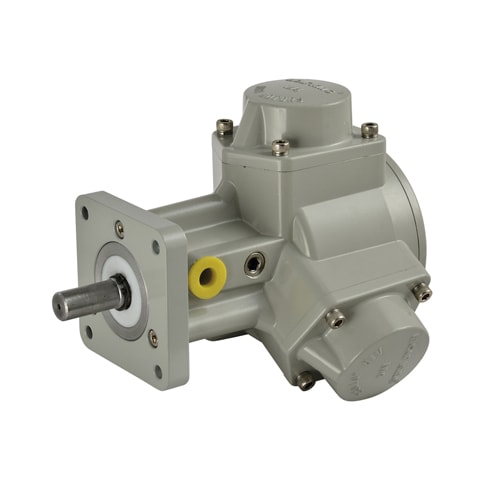

Item No. DP-AM4
Gear Ratio G1/3 G1/5 G1/10 G1/15 G1/20 G1/30 G1/40 G1/50 G1/60 G1/80
Power 0.33HP(0.24KW)
Torque(N.m) 3.5 9.5 16.2 32.4 47.5 63.7 94.8 125 156.7 185.9 264.6
Rated Speed(R.P.M) 900 300 180 90 60 45 30 22.5 18 15 11.2
Air Consumption 310L/min(10.9CFM)
Stall Torque(N.m) 4.7 13.5 22.3 44.5 70.9 94.6 144.1 186.8 239.5 280.7 402.6
Weight(KG),                                                T for basic type,                                       L for vertical type,                                 W for horizontal type T:3.1
L:3.3 L:9.7 L:12.3
W:4.6 W:9.9 W:12.5

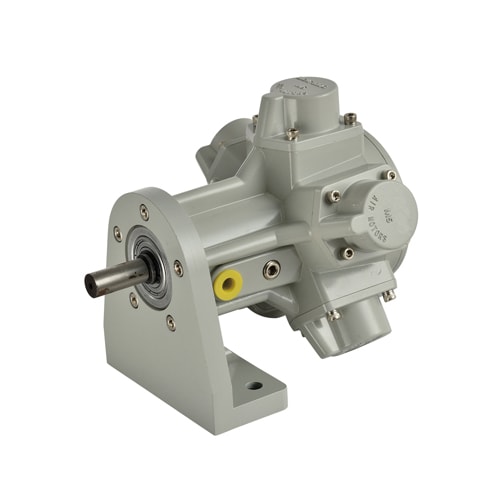

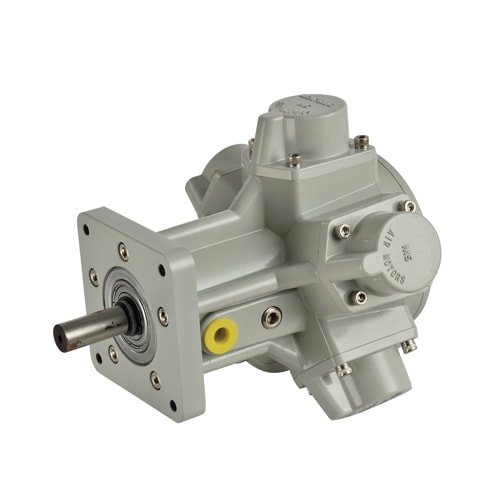

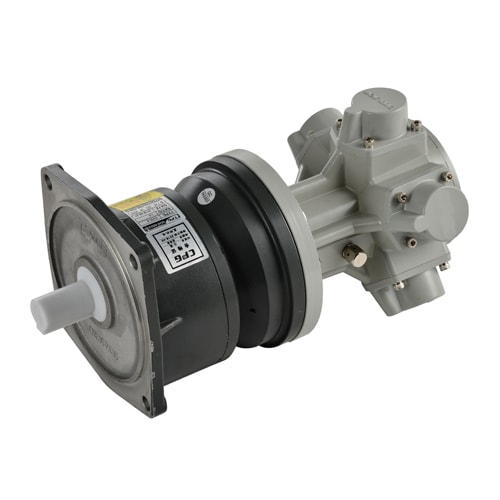

Item No. DP-AM5
Gear Ratio G1/3 G1/5 G1/10 G1/15 G1/20 G1/30 G1/40 G1/50 G1/60 G1/80
Power 0.5HP(0.37KW)
Torque(N.m) 4.7 13.3 22 43.5 64.3 87.2 12.5 171 213.5 256.2 338.1
Rated Speed(R.P.M) 750 250 150 75 50 37.5 25 18.5 15 12.5 9
Air Consumption 395L/min(13.9CFM)
Stall Torque(N.m) 6.5 17.8 29.6 59 86.7 119.5 178.9 236.1 296.8 358.8 524.2
Weight(KG),                                                T for basic type,                                       L for vertical type,                                  W for horizontal type T:5.2
L:5.5 L:11.9 L:14.5
W:5.7 W:12.1 W:14.8

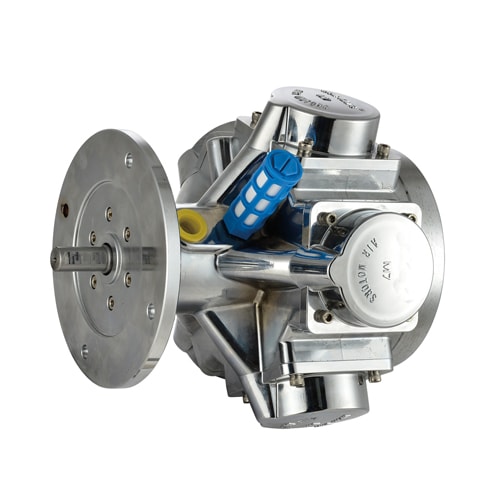

Item No. DP-AM6 DP-AM7
Gear Ratio G1/3 G1/5 G1/10 G1/15 G1/20 G1/30 G1/40 G1/50 G1/60 G1/80 G1/3 G1/5 G1/10 G1/15 G1/20
Power 0.75HP(0.56KW) 1.5HP(1.1KW)
Torque(N.m) 7.6 21.7 35.6 72 106.2 141.5 209.5 276.5 345.3 414.6 542.6 28 75.5 128.6 254.5 382.2 502
Rated Speed(R.P.M) 650 216 180 90 60 45 30 22.5 18 15 11.2 360 120 72 36 24 18
Air Consumption 504L/min(17.8CFM) 990L/min(35CFM)
Stall Torque(N.m) 11.5 31.5 36.5 74 114.5 152.5 225.6 304.4 373.9 449.6 594.3 45.8 103.7 182.5 365.2 580.4 766.5
Weight(KG),                                                T for basic type,                                       L for vertical type,                                 W for horizontal type T:5.6 T:19.5
L:6 L:12.4 L:15 L:22 L:33.9 L:34.1
W:6.9 W:12.6 W:15.2 W:29 W:47.2 W:48.1
