Pneumatic Agitator Stationary Type
The Pneumatic Agitator Stationary Type features a durable 3-leg design and stainless steel mixer propellers. Built for high-quality, stable performance in industrial mixing applications.

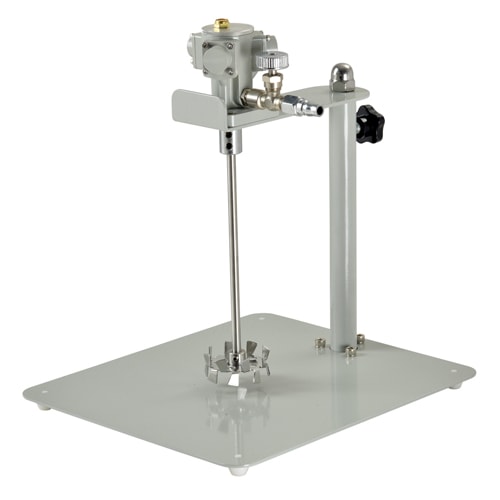

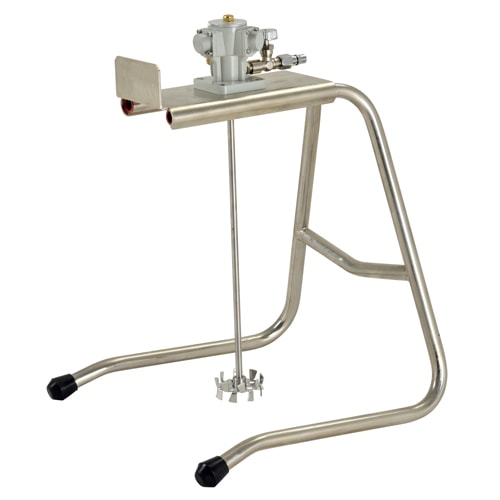

| Item No. | DP-1JJ | DP-1PJ | DP-1SJ | DP-1SYJ |
| Reduction Gear Ratio | 1:1 | 1:1 | 1:1 | 1:1 |
| Power (HP) | 0.026 (19W) | 0.026 (19W) | 0.026 (19W) | 0.026 (19W) |
| Torque (N.m) | 0.15 | 0.15 | 0.15 | 0.15 |
| Speed RPM | 1200 | 1200 | 1200 | 1200 |
| Air Consumption (L/min) | 40 | 40 | 40 | 40 |
| Air Inlet Size | G1/8 | G1/8 | G1/8 | G1/8 |
| Shaft Material and Size | SUS304/316 8×300 | SUS304/316 8×360 | SUS304/316 8×218 | SUS304/316 8×218 |
| Blade Material and Size | SUS304/316 | SUS304/316 | SUS304/316 | SUS304/316 |
| Weight (kgs) | 2.6 | 3.5 | 4.1 | 5.4 |
| Box Dimension (mm) | 280X280X420 | 380X370X470 | 328x288x341 | 328x288x341 |

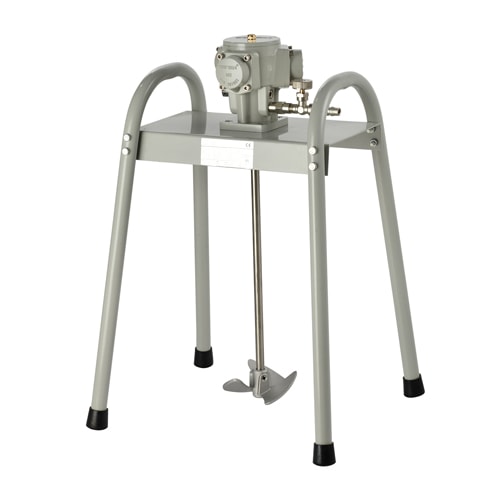

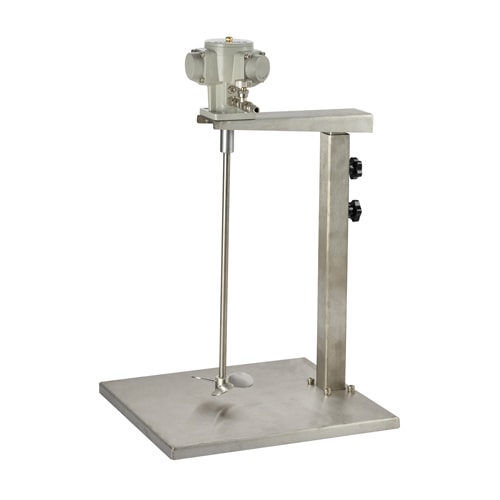

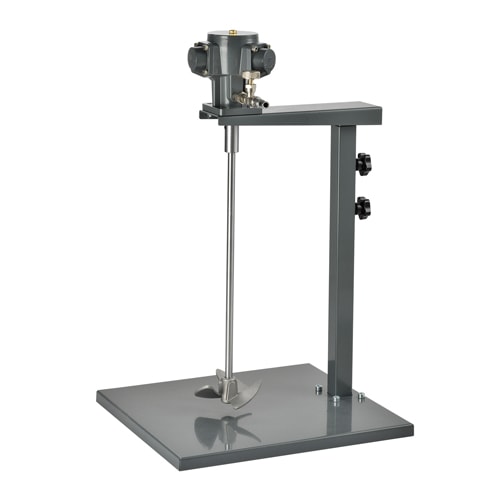

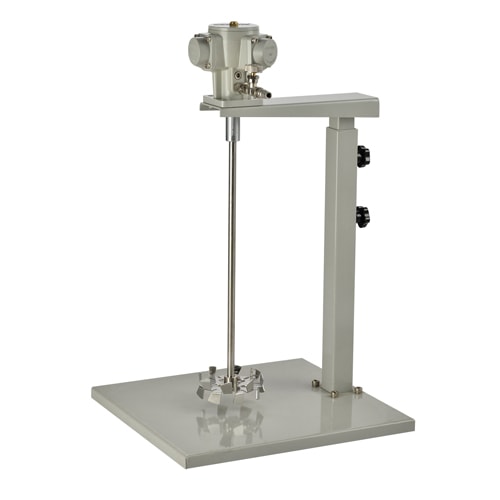

| Item No. | DP-AM1-S | DP-AM2P | DP-AM2S-S | DP-AM2S-SUS |
| Reduction Gear Ratio | 1:1 | 1:1 | 1:1 | 1:1 |
| Power (HP) | 0.11 (0.08KW) | 0.16 (0.12KW) | 0.16 (0.12KW) | 0.16 (0.12KW) |
| Torque (N.m) | 0.64 | 0.95 | 0.95 | 0.95 |
| Speed RPM | 200 | 1200 | 1200 | 1200 |
| Air Consumption (L/min) | 210 | 210 | 210 | 210 |
| Air Inlet Size | G1/4 | G1/4 | G1/4 | G1/4 |
| Shaft Material and Size | SUS304/316 12×440 | SUS304/316 12×440 | SUS304/316 12×440 | SUS304/316 12×440 |
| Blade Material and Size | SUS304/316/Aluminum alloy/Nylon | SUS304/316/Aluminum alloy/Nylon | SUS304/316/Aluminum alloy/Nylon | SUS304/316/Aluminum alloy/Nylon |
| Mixing Volume | 20-40L | 20L | 20-40L | 20-40L |
| Weight (kgs) | 9 | 5.2 | 10.5 | 10.5 |
| Box Dimension (mm) | 422x144x631 | 370x190x520 | 422x144x631 | 422x144x631 |

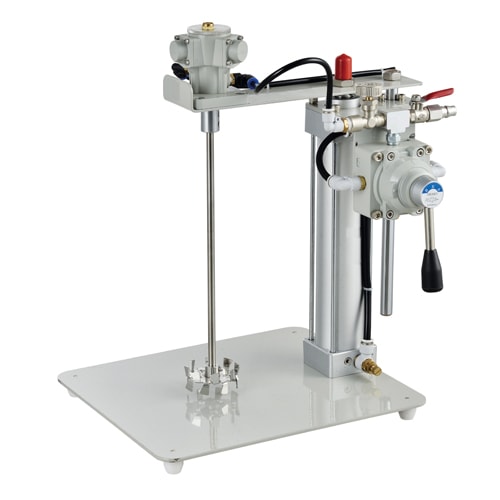

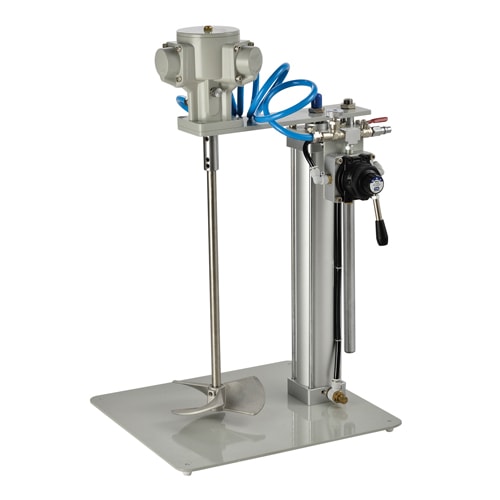

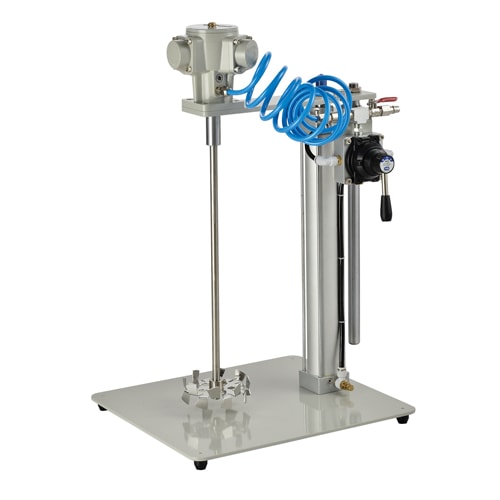

| Item No. | DP-1ZJ | DP-AM2Z-S | DP-AM3Z-S | DP-AM3Z-SUS |
| Reduction Gear Ratio | 1:1 | 1:1 | 1:1 | 1:1 |
| Power (HP) | 0.026 (19W) | 0.16 (0.12KW) | 0.25 (0.18KW) | 0.25 (0.18KW) |
| Torque (N.m) | 0.15 | 0.95 | 1.7 | 1.7 |
| Speed RPM | 1200 | 1200 | 1000 | 1000 |
| Air Consumption (L/min) | 40 | 210 | 260 | 260 |
| Air Inlet Size | G1/4 | G1/4 | G1/4 | G1/4 |
| Shaft Material and Size | SUS304/316 8×300 | SUS304/316 12×440 | SUS304/316 15×435 | SUS304/316 15×435 |
| Blade Material and Size | SUS304/316 | SUS304/316/Aluminum alloy/Nylon | SUS304/316/Aluminum alloy | SUS304/316/Aluminum alloy |
| Mixing Volume | 10L | 20-40L | 20-60L | 20-60L |
| Lifable Height (mm) | 200 | 360 | 360 | 360 |
| Weight (kgs) | 9 | 15.8 | 16.8 | 16.8 |
| Box Dimension (mm) | 380x370x470 | 422x144x631 | 422x144x631 | 422x144x631 |

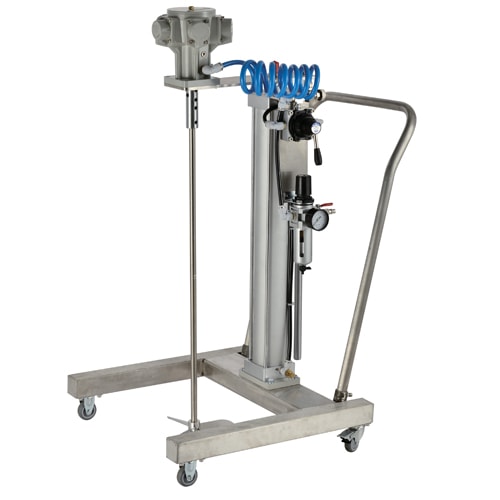

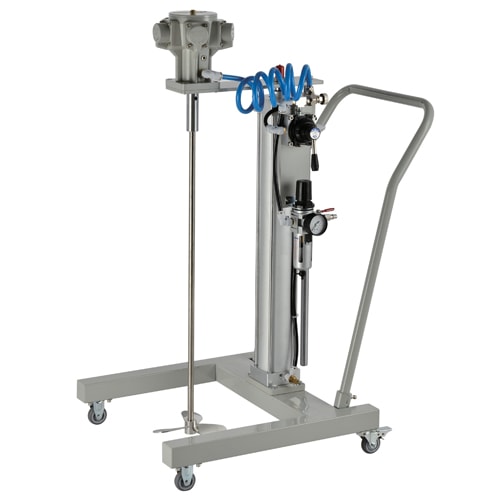

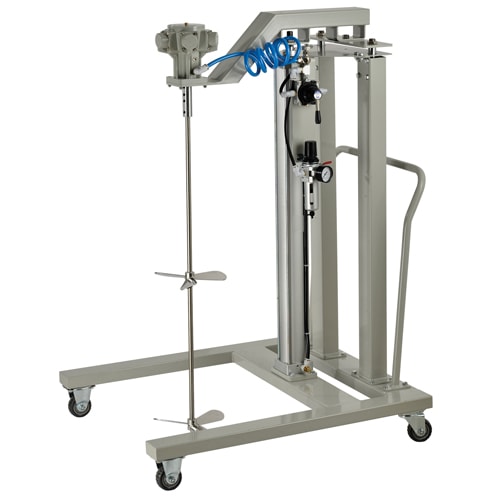

Air agitator with wheels for easy moving.
| Item No. | DP-UAM5-1S | DP-UAM5-1SUS | DP-UAM5-2S |
| Reduction Gear Ratio | 1:1 | 1:1 | 1:1 |
| Power (HP) | 0.5 (0.37KW) | 0.5 (0.37KW) | 0.5 (0.37KW) |
| Torque (N.m) | 4.7 | 4.7 | 4.7 |
| Speed RPM | 750 | 750 | 750 |
| Air Consumption (L/min) | 395 | 395 | 395 |
| Air Inlet Size | G1/4 | G1/4 | G1/4 |
| Shaft Material and Size | SUS304/316 15×815 | SUS304/316 15×815 | SUS304/316 15×1170 |
| Blade Material and Size | SUS304/316/Aluminum alloy | SUS304/316/Aluminum alloy | SUS304/316/Aluminum alloy |
| Mixing Volume | 20-80L | 20-80L | 80-200L |
| Lifable Height (mm) | 600 | 600 | 900 |
| Weight (kgs) | 30 | 30 | 38 |
| Box Dimension (mm) | 840X420X260 | 840X420X260 | / |
| Item No. | DP-HAM7-2S |
| Reduction Gear Ratio | 1:1 |
| Power (HP) | 1.5 (1.1KW) |
| Torque (N.m) | 28 |
| Speed RPM | 360 |
| Air Consumption (L/min) | 990 |
| Air Inlet Size | G1/2 |
| Shaft Material and Size | SUS304/316 25×1320 |
| Blade Material and Size | SUS304/316 |
| Weight (kgs) | 50 |
