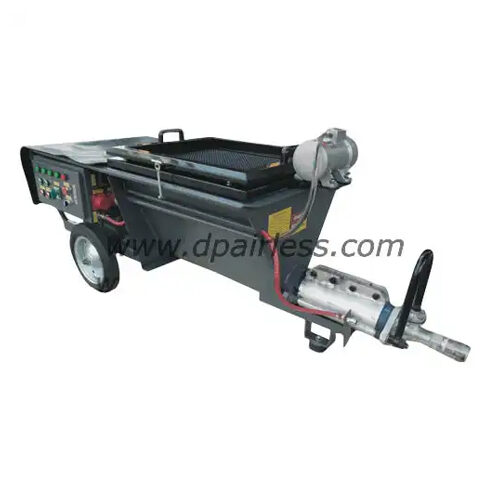

DP-N6 series Cement Mortar Sprayers similar to Putzmeister S5

features Of DP-N6 series Cement Mortar Sprayers similar to Putzmeister S5：

1. Output volume adjustable (lower/high speed)

2. The machine is equipped with vibration screen.

3. The pump sprayer has remote control function.

4. The cement mortar spray pump use Germany made durable screw pump (rotor / stator made in Germany).

5. Control box: the core of the machine, to drive the motor, air & water pump.

6. Safety cover & quick unpack gear & material hopper: the material can be unpack

by the gear on the net cover, and be even poured into the tank.

7. Quick snap: easy to fix the material hopper and the cart.

8. 5.5KW motor & retarder: to drive the twister for material transportation.

9. Stirrer tank: quick and even mixing material.

10. Water inlet: lead water into the machine from outside.

11. Spinning Form Twister & Screw Pump: the material will be transport to the outlet by

the screw pump after the quick and even mixing by twister.

12. Pressure controller: to adjust the pressure of the mortar pipe to avoid the suddenness

13. Mortar pipe connector: very easy to connect with the machine.

The model of DP-N6 series  Cement Mortar Sprayers as follows:

If using electricity generator to drive, 30KW is recommended.Standard Accessories for N6:

Φ32mm*10m mortar hose 1pc

Φ13mm*10m air hose 2pcs

Spray gun 1pc with 4 nozzles

Repair kit 1set

Standard Accessories for N3:

Φ35mm*10m mortar hose 1pc

Φ13mm*5m air hose  2pcs

Spray gun 1pc with 3 nozzles 16mm

Repair kit 1set

Tip sizes available: 8 / 10 / 12 / 14 / 16 / 20mm.

8 & 10mm: mainly used for fire protection mortar and thin mortar.

12 / 14 / 16 / 20: used for normal mortar spraying.
